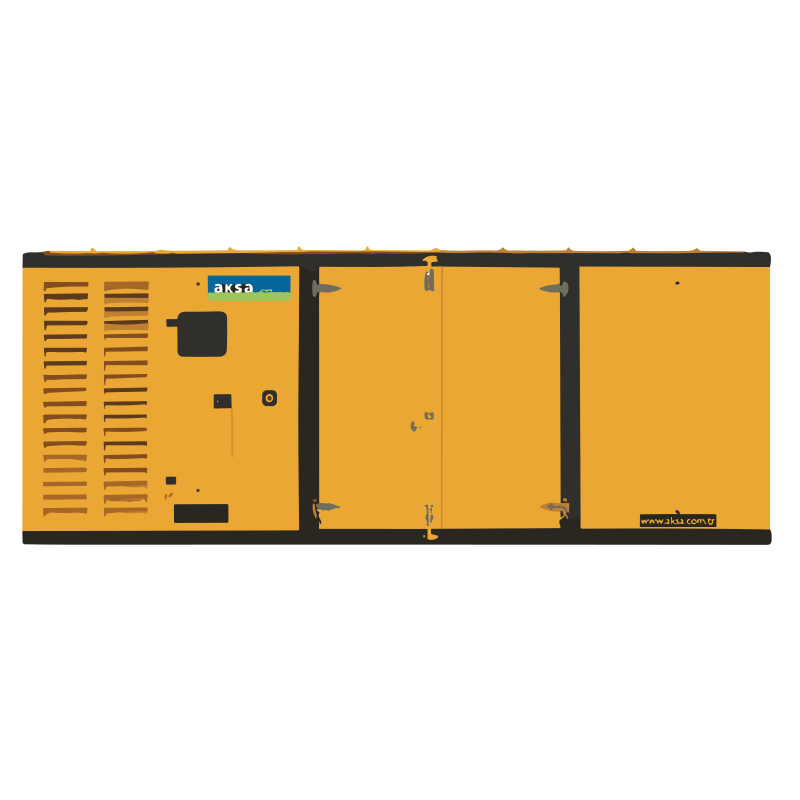

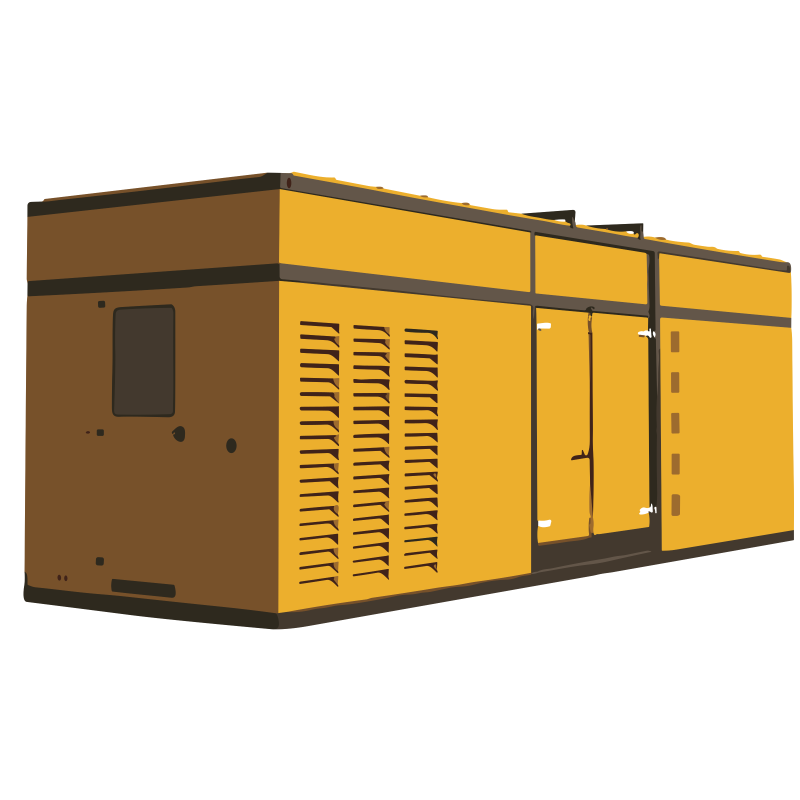

Full Specification of AC 2500 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: CUMMINS
- Alternator: ECO 46-1.5L/4 A
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 2500 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - QSK60-G8 |
Alternator Made and Model | Mecc Alte - ECO 46-1.5L/4 A |
Control Panel Model | DSE 7320 |
Canopy | AK 99 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 2500 | 2000.0 | - | - | 3608.55 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | QSK60-G8 | |
NO. OF CYLINDERS AND BUILD | 16 cylinders - V type | |
BORE AND STROKE | mm | 159 X 190 |
TOTAL DISPLACEMENT | L | 60.2 |
Aspiration | Turbocharged and Low Temperature Aftercooled | |
COMPRESSION RATIO | 14.5:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 176 |
Standby Power (kW/HP) | 2145/2876.5 | |
Block Heater QTY | 2 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Cummins HPI-PT | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 4x143 | |
Charge Alternator (A) | 55 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 2570 | |
Coolant Capacity (engine only / with radiator) (lt) | 159 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 449 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 335 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 228 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 46-1.5L/4 A | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 2300 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DER1 | |
Voltage Regulation | (+/-) | 0.5 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 4260 | |
COOLING AIR (m³/min) | m3 | 135 |
SIZE and WEIGHT
Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |

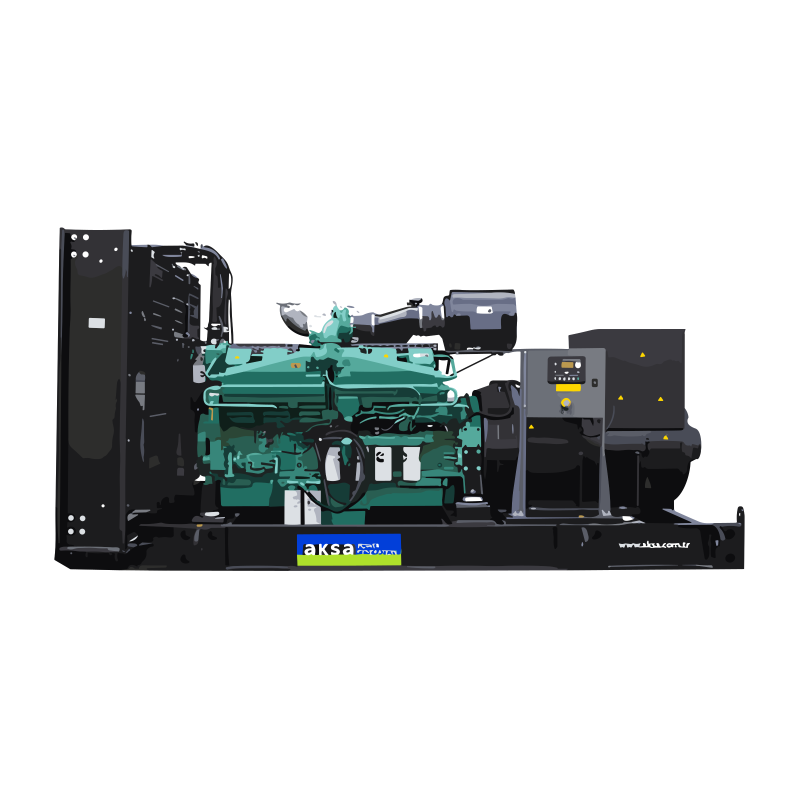

5891 | 2310 | 3085 | 2000 | ||
CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 99 | 22000 | 9000 | 2800 | 3456 | 2200 |
STANDARD SPECIFICATIONS
Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Remote Radiator Cooling• Electronic governor control
• Fuel-Water Separator Filter
• Low water level alarm
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Single Phase ( 4 lead)
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronizing and power control system ( multi gen-set Parallel )• Parallels system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three Pole Contactor• Four Pole Contactor
• Three or four pole contactor
• Motorola Salter
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weather protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorized louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Double wall chassis
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
• Battery heater
• Automatic transfer switch
AC2500 Diesel Generator: Elevating Power to Unprecedented Heights
In a world where power is a necessity for sustaining crucial operations and industries, the AC2500 Diesel Generator by Aksa takes center stage. With an impressive 2500 KVA capacity, this generator stands as a pinnacle of power generation, designed for the most demanding applications. In this comprehensive blog, we will explore the various aspects of the AC2500, from its outstanding features to its versatile applications and essential maintenance guidelines.
Key Features
- Unrivaled Power Unleashed:
- The AC2500 Diesel Generator offers an astounding 2500 KVA capacity, making it a reliable source of electricity for applications requiring substantial and uninterrupted power. From large industrial plants to critical data centers, it's equipped to meet the most demanding requirements.
- Peak Fuel Efficiency:
- Driven by a dependable diesel engine, the AC2500 excels not only in power but also in fuel efficiency. Its cost-effective operation makes it an attractive choice for businesses seeking to manage their operational expenses efficiently.
- Reliability Beyond Comparison:
- When continuous power is non-negotiable, the AC2500 delivers. Engineered for utmost reliability, it incorporates premium components to ensure a consistent power supply, even during prolonged outages.
- Versatility at Its Core:
- The AC2500 seamlessly adapts to diverse environments and applications, serving as both a primary power source for remote locations and a dependable backup for mission-critical facilities. It's an ideal choice for various industries.
- Advanced Control and Monitoring:
- The digital control panel, equipped with a user-friendly interface, enables remote monitoring, automated testing, and seamless integration with existing infrastructure. This offers full control over your power supply, regardless of your location.
Applications
The AC2500 Diesel Generator finds its place in a myriad of sectors, including:
- Large-scale manufacturing and industrial complexes
- Data centers and IT facilities
- Healthcare and medical facilities
- Telecommunications and data networks
- Mining and mineral extraction operations
- Construction sites and infrastructure projects
- Agricultural operations
- Large events and entertainment venues
Maintenance
Regular maintenance is pivotal to ensure optimal performance. Consider these maintenance tips for the AC2500:
- Scheduled oil changes and filter replacements
- Routine checks of the cooling system and radiator
- Inspections of electrical connections and fuel lines
- Monitoring the control panel for any alarms or warnings
Safety Precautions
Safety is paramount when operating the AC2500 generator. Follow these safety guidelines:
- Ensure proper ventilation in the generator room to prevent exhaust accumulation.
- Regularly inspect and clean the generator and its surroundings.
- Ensure that operators are adequately trained to handle the generator safely.
Environmental Compliance
The AC2500 Diesel Generator adheres to emissions and environmental regulations, underlining its commitment to eco-friendliness and environmental responsibility.
Conclusion
The AC2500 Diesel Generator is not just a power source; it's the backbone of industries and services that rely on continuous and unwavering electricity. With its exceptional features, adaptability, and reliability, it embodies a comprehensive power solution for the modern world. For the latest information on the AC2500 and its specifications, consult with Aksa or an authorized distributor. Elevate your power supply to new heights with the AC2500.
