Full Specification of AP 275 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: PERKINS
- Alternator: ECO 38-2M/4 C
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
Model Name | AP 275 | ||
---|---|---|---|
Frequency (Hz) | 50 | ||
Fuel Type | Diesel | ||
Engine Made and Model | PERKINS - 1206A-E70TTAG3 | ||
Alternator Made and Model | Mecc Alte - ECO 38-2M/4 C | ||
Control Panel Model | DSE 7320 | ||
Canopy | MS 60 |
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
---|---|---|---|---|---|
kVA | kW | kVA | kW | ||
400/231 | 275 | 220.0 | 250 | 200.0 | 396.94 |
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
Engine | PERKINS | ||
---|---|---|---|
Engine Model | 1206A-E70TTAG3 | ||
NO. OF CYLINDERS AND BUILD | 6 cylinders - in line | ||
BORE AND STROKE | mm | 105 X 135 | |
TOTAL DISPLACEMENT | L | 7,01 | |
Aspiration | Turbo Charged and AfterCooled | ||
COMPRESSION RATIO | 15.8:1 | ||
RATED SPEED (RPM) | d/dk | 1500 | |
OIL CAPACITY | L | 41 | |
Standby Power (kW/HP) | 248.6/333.1 | ||
Prime Power | 226.2/303.1 | ||
Block Heater QTY | |||
1 | |||
Block Heater Power (Watt) | |||
1500 | |||
Fuel Type | |||
Diesel | |||
Injection Type and System | |||
Denso G3S | |||
Type of Fuel Pump | |||
Denso HP4 | |||
Governor System | |||
ECM | |||
Operating Voltage (Vdc) | |||
12 Vdc | |||
Battery and Capacity (Qty/Ah) | |||
1x85 | |||
Charge Alternator (A) | |||
100 | |||
Cooling Method | |||
Water Cooled | |||
Cooling Fan Air Flow (m3/min) | |||
265,2 | |||
Coolant Capacity (engine only / with radiator) (lt) | |||
25/29.6 | |||
Air Filter | |||
Dry Type | |||
Fuel Cons. Prime With %100 Load (lt/hr) | |||
56.9 | |||
Fuel Cons. Prime With %75 Load (lt/hr) | |||
41.5 | |||
Fuel Cons. Prime With %50 Load (lt/hr) | |||
28.1 |
Manufacturer | Mecc Alte | |
---|---|---|
Alternator Made and Model | ECO 38-2M/4 C | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 250 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DSR | |
Voltage Regulation | (+/-) | 1 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 653 | |
COOLING AIR (m³/min) | m3 | 32 |

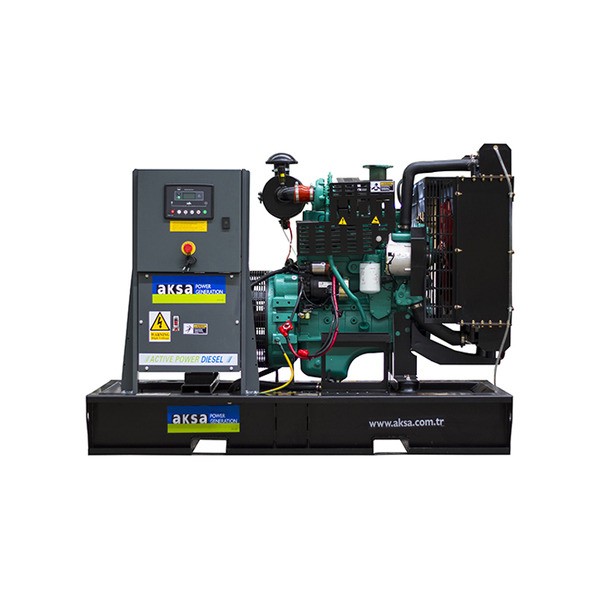

Open Type | DRY WEIGHT (kg.) (kg.) | LENGTH (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
---|---|---|---|---|---|
2165 | 2750 | 1300 | 1928 | 470 | |

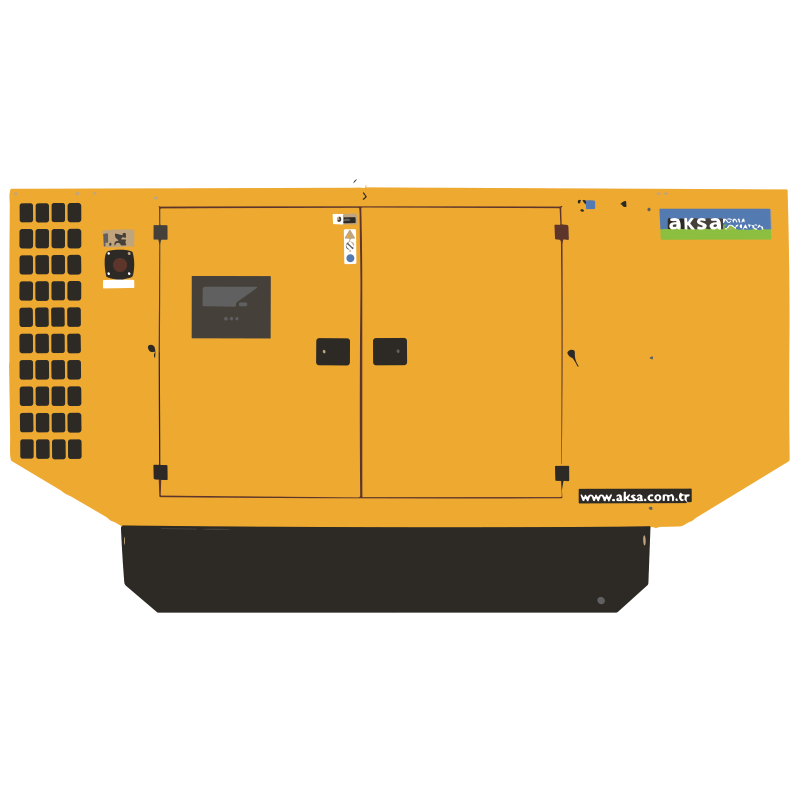

CANOPY | DRY WEIGHT (kg.) (kg.) | LENGTH (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
MS 60 | 3180 | 3934 | 1356 | 2140 | 470 |
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
• Fuel-Water Seperator Filter
• Oil heater
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
• Three or four pole contactor
• Three or four pole motor operated circuit breaker
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
Unleashing Power and Reliability: A Closer Look at the 275 KVA Diesel Generator - Aksa AP275
In the modern world, where uninterrupted power supply is paramount, finding a dependable and robust generator is a top priority for businesses of all sizes. Enter the 275 KVA Diesel Generator - Aksa AP275, a powerhouse that sets the standard for reliability and efficiency in the world of power generation. In this blog post, we'll dive deep into the key features and advantages of the Aksa AP275 generator and explore why it's the go-to solution for industries with high power demands.
1. Unrivaled Reliability
Aksa, a renowned name in the power generation industry, is known for producing generators that are synonymous with reliability. The Aksa AP275 lives up to this reputation by ensuring a constant and dependable source of power, even in the face of power outages and emergencies.
2. Optimal Power Efficiency
At 275 KVA, the Aksa AP275 packs a punch in terms of power capacity. This generator is a workhorse, suitable for a wide array of applications ranging from large industrial setups to commercial establishments. Its efficient diesel engine guarantees that you get maximum power output while minimizing fuel consumption, a crucial aspect for cost savings and environmental concerns.
3. Sturdy Build for Longevity
The Aksa AP275 is constructed to endure the harshest of conditions. Its robust design and top-quality materials ensure that it can withstand the rigors of various environments, whether you require it for a construction site, outdoor event, or a remote location.
4. State-of-the-Art Technology
With advanced technology integrated into the AP275, it becomes a versatile solution for your power needs. Features like automatic voltage regulation and soundproofing ensure that it operates quietly, reducing noise pollution and creating a comfortable working atmosphere.
5. User-Friendly Maintenance
Routine maintenance is key to ensuring the longevity and reliability of any generator. Aksa has made it easy to carry out regular check-ups and maintenance on the AP275, simplifying the process and enhancing the life of the unit.
6. Environmental Responsibility
In an era where environmental responsibility is paramount, Aksa has taken steps to minimize emissions and reduce its environmental impact. The AP275 is designed with this in mind, making it a conscious choice for those who prioritize sustainability.
7. Versatile Applications
The 275 KVA capacity of the Aksa AP275 enables it to be employed in a wide range of scenarios. Whether you need it for an industrial plant, a remote research station, or as a backup power source for your business, this generator is more than up to the task.
Conclusion
In the world of power generation, the 275 KVA Diesel Generator - Aksa AP275 shines as a symbol of reliability, efficiency, and environmental responsibility. Its advanced technology, ease of maintenance, and adaptability for various applications make it a valuable asset for businesses and events. When you choose the Aksa AP275, you're not merely investing in a generator; you're guaranteeing that your power requirements are met with excellence and trustworthiness. Rely on Aksa's legacy of quality, and make the Aksa AP275 an integral part of your power solution.
