Full Specification of AC 3000 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: CUMMINS
- Alternator: ECO 46 -VL/4 A
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- ISO 14001-2004
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 3000 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - QSK78-G9 |
Alternator Made and Model | Mecc Alte - ECO 46 -VL/4 A |
Control Panel Model | DSE 7320 |
Canopy | AK 101 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 3000 | 2400.00 | 2750 | 2200.00 | 4330.25 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | QSK78-G9 | |
NO. OF CYLINDERS AND BUILD | 18 cylinders - V type | |
BORE AND STROKE | mm | 170 X 190 |
TOTAL DISPLACEMENT | L | 77.6 |
Aspiration | Turbocharged and Low Temperature Aftercooled | |
COMPRESSION RATIO | 15.5:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 466 |
Standby Power (kW/HP) | 2539/3404 | |
Prime Power | 2304/3088 | |
Block Heater QTY | 2 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Cummins HPI-PT | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 6x143 | |
Charge Alternator (A) | 55 | |
Cooling Method | Water Cooled | |
Coolant Capacity (engine only / with radiator) (lt) | 166.6 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 528 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 406 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 291 |

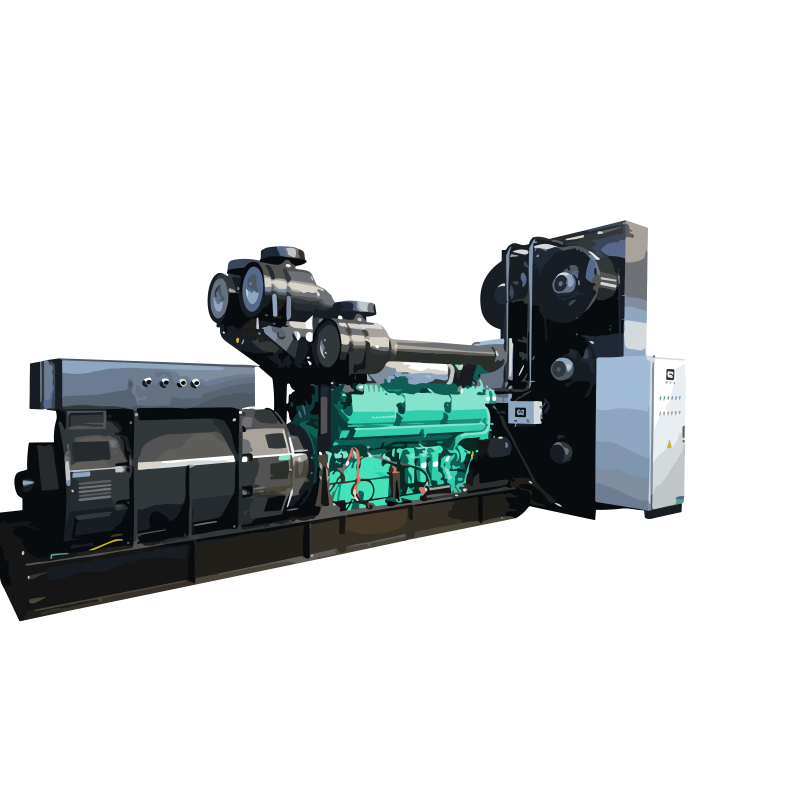

SIZE and WEIGHT
Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
16300 | 7421 | 2637 | 4736 | 2500 | |

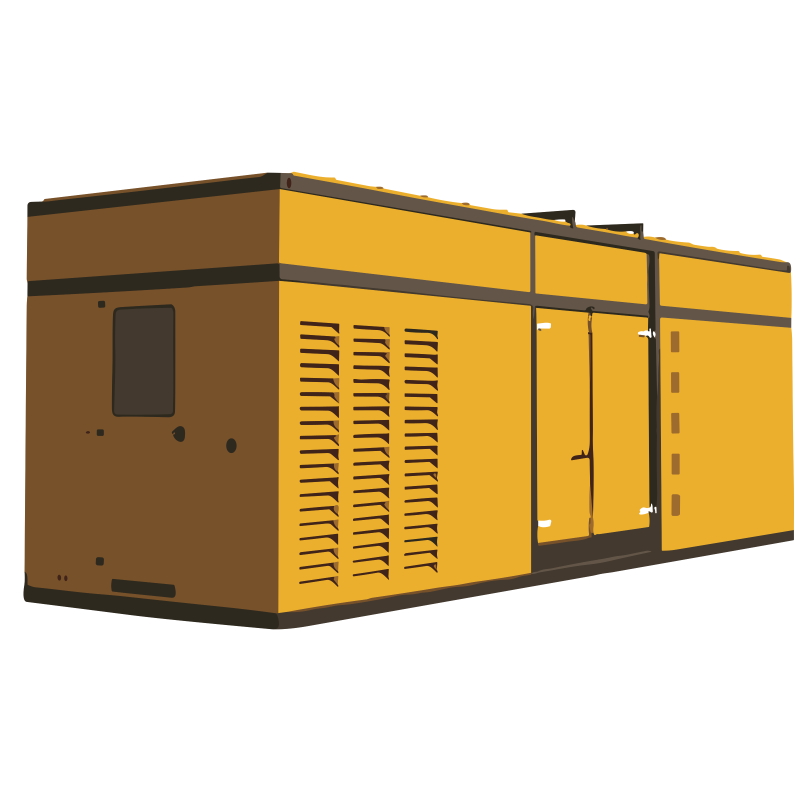

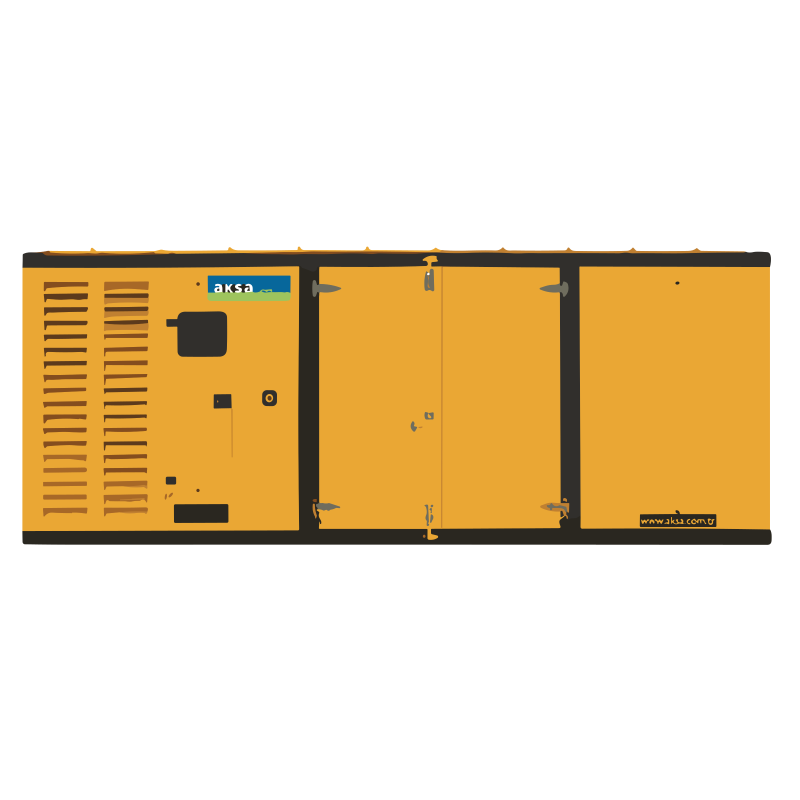

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 101 | 25000 | 11000 | 2800 | 3888 | - |

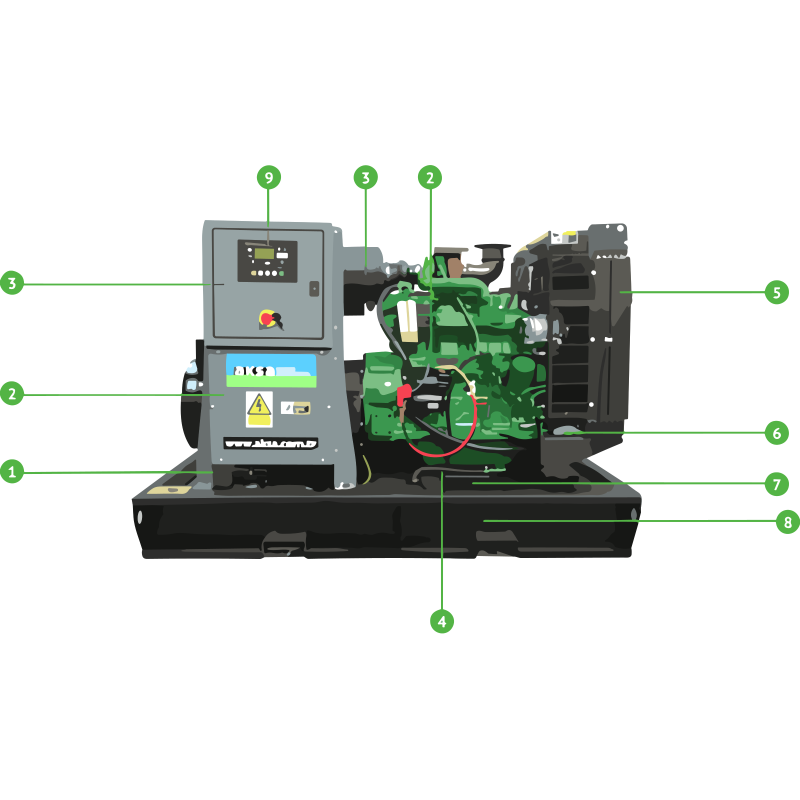

STANDARD SPECIFICATIONS
Water cooled diesel engine
Remote Radiator with electric fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Electronic governor control• Fuel-Water Separator Filter
• Low water level alarm
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Single Phase ( 4 lead)
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three Pole Contactor• Four Pole Contactor
• Three or four pole contactor
• Motorlu Şalter
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Double wall chassis
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
• Battery heater
• Automatic transfer switch
AC3000 Diesel Generator: Elevating Power to the Extraordinary
In a world where power is the lifeblood of industries and critical services, the AC3000 Diesel Generator by Aksa, with its monumental 3000 KVA capacity, emerges as a true colossus in the realm of power generation. Designed to meet the most demanding applications, this generator represents the pinnacle of unwavering and continuous power supply. In this comprehensive blog, we will explore various aspects of the AC3000, from its remarkable features to its versatile applications and crucial maintenance guidelines.
Key Features
- Unprecedented Power Unleashed:
- The AC3000 Diesel Generator offers an astonishing 3000 KVA capacity, making it the ultimate solution for applications that demand substantial and uninterrupted electricity. From sprawling industrial complexes to critical data centers, it's engineered to meet the most stringent requirements.
- Fuel Efficiency at Its Zenith:
- Powered by a dependable diesel engine, the AC3000 doesn't just deliver power, it does so efficiently. Its outstanding fuel economy ensures cost-effective operation, making it an attractive choice for businesses aiming to manage operational costs efficiently.
- Reliability Beyond Imagination:
- When continuity is non-negotiable, the AC3000 excels. Engineered for utmost reliability, it incorporates premium components that ensure a consistent power supply, even during prolonged outages.
- Versatility at Its Core:
- The AC3000 seamlessly adapts to diverse environments and applications. It can serve as both a primary power source for remote locations and a dependable backup for mission-critical facilities, making it a versatile choice for various industries.
- Advanced Control and Monitoring:
- The digital control panel, equipped with a user-friendly interface, enables remote monitoring, automated testing, and seamless integration with existing infrastructure. This provides full control over your power supply, regardless of your location.
Applications
The AC3000 Diesel Generator finds its place in a multitude of sectors, including:
- Large-scale manufacturing and industrial complexes
- Data centers and IT facilities
- Healthcare and medical facilities
- Telecommunications and data networks
- Mining and mineral extraction operations
- Construction sites and infrastructure projects
- Agricultural operations
- Large events and entertainment venues
Maintenance
Regular maintenance is pivotal to ensure optimal performance. Consider these maintenance tips for the AC3000:
- Scheduled oil changes and filter replacements
- Routine checks of the cooling system and radiator
- Inspections of electrical connections and fuel lines
- Monitoring the control panel for any alarms or warnings
Safety Precautions
Safety is paramount when operating the AC3000 generator. Follow these safety guidelines:
- Ensure proper ventilation in the generator room to prevent exhaust accumulation.
- Regularly inspect and clean the generator and its surroundings.
- Ensure that operators are adequately trained to handle the generator safely.
Environmental Compliance
The AC3000 Diesel Generator adheres to emissions and environmental regulations, underlining its commitment to eco-friendliness and environmental responsibility.
Conclusion
The AC3000 Diesel Generator is not just a power source; it is the lifeline of industries and services that rely on continuous and unwavering electricity. With its exceptional features, adaptability, and reliability, it embodies a comprehensive power solution for the modern world. For the latest information on the AC3000 and its specifications, consult with Aksa or an authorized distributor. Elevate your power supply to extraordinary levels with the AC3000.
