Full Specification of AP 33 Diesel Generator With Details Guide!
- Product: PERKINS
- Alternator: ECP 28-VL/4 C
- CONTROL SYSTEM: DSE 6120
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AP 33 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | PERKINS - 1103A-33G |
Alternator Made and Model | Mecc Alte - ECP 28-VL/4 C |
Control Panel Model | DSE 6120 |
Canopy | AK 21 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 33 | 26.4 | 30 | 24.0 | 47.63 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | PERKINS | |
Engine Model | 1103A-33G | |
NO. OF CYLINDERS AND BUILD | 3 cylinders - in line | |
BORE AND STROKE | mm | 105 X 127 |
TOTAL DISPLACEMENT | L | 3.3 |
Aspiration | Naturally Aspirated | |
COMPRESSION RATIO | 19.25:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 8.3 |
Standby Power (kW/HP) | 31/41,55 | |
Prime Power | 28.2/37,80 | |
Block Heater QTY | 1 | |
Block Heater Power (Watt) | 500 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Delphi Rotary Type | |
Governor System | Mechanic | |
Operating Voltage (Vdc) | 12 Vdc | |
Battery and Capacity (Qty/Ah) | 1x55 | |
Charge Alternator (A) | 65 | |
Cooling Method | Water Cooled | |
Coolant Capacity (engine only / with radiator) (lt) | 10.2 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 7.1 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 5.4 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 3.9 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECP 28-VL/4 C | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 30 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DSR | |
Voltage Regulation | (+/-) | 1 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 141.8 | |
COOLING AIR (m³/min) | m3 | 6.6 |
SIZE and WEIGHT

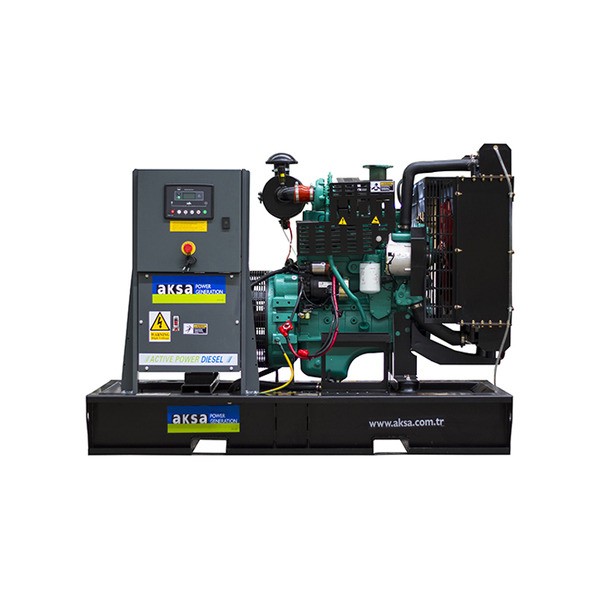

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
665 | 1691 | 970 | 1202 | 80 | |

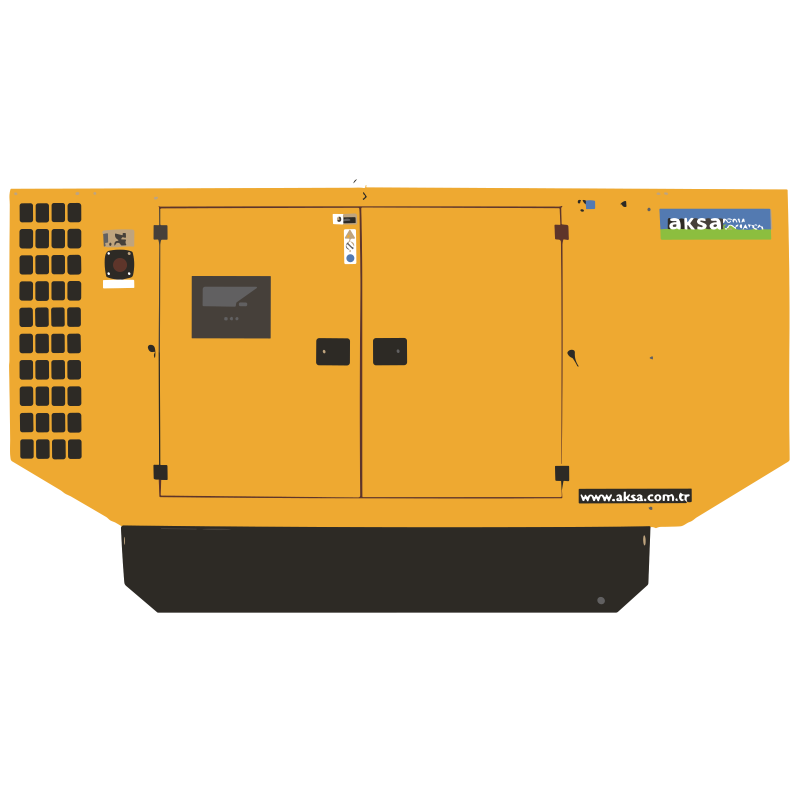

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 21 | 880 | 2102 | 1030 | 1290 | 80 |
STANDARD SPECIFICATIONS
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
OPTIONAL EQUIPMENTS
ENGINE
• Fuel-Water Seperator Filter• Low water level alarm
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• Main line circuit breaker
CONTROL SYSTEM
• Remote annunciator panel• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
Powering Up with the 33 KVA Aksa Diesel Generator - Model AP33
In a world driven by technology and dependent on a constant supply of electricity, power outages can be both disruptive and costly. Whether you're running a business, managing a construction site, or seeking backup power for your home, having a reliable generator is essential. The 33 KVA Aksa Diesel Generator, Model AP33, is a powerful and dependable solution that can keep your operations running smoothly even during power interruptions.
The AP33 Diesel Generator: A Brief Overview
The Aksa Group, a renowned name in the power generation industry, offers the AP33 Diesel Generator as part of its comprehensive lineup. This particular generator boasts a power rating of 33 KVA (Kilovolt-Amperes), making it a versatile and robust choice for various applications.
Key Features of the AP33 Aksa Diesel Generator:
- Reliable Diesel Power: The AP33 is powered by a diesel engine, known for its efficiency and durability. This means it can provide a stable source of electricity for an extended period, ideal for both primary and backup power needs.
- Standby and Prime Power: The AP33 is suitable for both standby and prime power applications, making it a flexible solution for various scenarios. Whether you need it as a primary power source for remote locations or as a backup during emergencies, the AP33 has you covered.
- Advanced Control Panel: Aksa's AP33 comes equipped with an advanced control panel that enables seamless monitoring and operation. It provides essential information, including voltage, frequency, and operating hours, to keep you informed about the generator's performance.
- Efficient Fuel Consumption: This generator is designed for fuel efficiency, ensuring that it consumes less diesel while delivering maximum power. This not only saves you money on fuel costs but also reduces the generator's environmental footprint.
- Weather-Resistant Design: The generator is built to withstand a variety of environmental conditions, ensuring it operates effectively in diverse settings. Whether you're dealing with extreme heat or freezing temperatures, the AP33 can handle it.
- Quiet Operation: Noise pollution can be a significant concern when operating generators. The AP33 is engineered for quiet operation, making it suitable for locations where noise restrictions apply.
Applications of the AP33 Diesel Generator
The AP33 Aksa Diesel Generator finds utility in a wide range of applications:
- Commercial and Industrial Settings: It's ideal for powering factories, offices, and other commercial establishments during power outages or in off-grid locations.
- Construction Sites: The robust and portable design of the AP33 makes it well-suited for construction sites, where a reliable power supply is crucial for tools and equipment.
- Hospitals and Healthcare Facilities: In healthcare settings, power continuity is a matter of life and death. The AP33 can serve as a backup power source for critical healthcare equipment.
- Agricultural Operations: Farms and agricultural operations can rely on the AP33 for their power needs, especially in rural areas with unreliable electrical grids.
- Data Centers: Data centers require uninterrupted power to protect critical data. The AP33 can ensure that servers and cooling systems remain operational in case of power failures.
- Residential Backup: For homeowners, the AP33 provides peace of mind during storms and other emergencies, ensuring that essential appliances and lighting remain functional.
Conclusion
In a world where power outages can lead to financial losses and inconvenience, the 33 KVA Aksa Diesel Generator, Model AP33, shines as a dependable solution. Its blend of power, reliability, and efficiency makes it a smart choice for various applications. When it comes to safeguarding your business, construction project, or home against power interruptions, the AP33 has your back, ensuring that the lights stay on and operations continue without disruption.
