Full Specification of AP 330 Diesel Generator with Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
- Product: PERKINS
- Alternator: ECO 38-1L/4 C
- CONTROL SYSTEM: DSE 7320
Certificate
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AP 330 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | PERKINS - 1506A-E88TAG5 |
Alternator Made and Model | Mecc Alte - ECO 38-1L/4 C |
Control Panel Model | DSE 7320 |
Canopy | MS 60 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 330 | 264.0 | 300 | 240.0 | 476.33 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | PERKINS | |
Engine Model | 1506A-E88TAG5 | |
NO. OF CYLINDERS AND BUILD | 6 cylinders - in line | |
BORE AND STROKE | mm | 112 X 149 |
TOTAL DISPLACEMENT | L | 8.8 |
Aspiration | Turbo Charged and AfterCooled | |
COMPRESSION RATIO | 16.1:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 41 |
Standby Power (kW/HP) | 307/411,52 | |
Prime Power | 281/376,67 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | HEUI | |
Governor System | ECM | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 1x85 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 370 | |
Coolant Capacity (engine only / with radiator) (lt) | 33.2 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 64.9 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 48.2 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 33 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 38-1L/4 C | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 300 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DSR | |
Voltage Regulation | (+/-) | 1 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 771 | |
COOLING AIR (m³/min) | m3 | 32 |
SIZE and WEIGHT

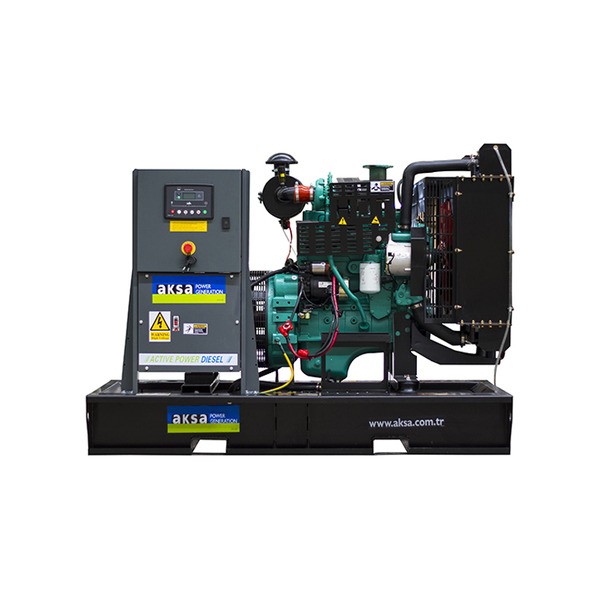

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
2385 | 2750 | 1300 | 1804 | 470 | |

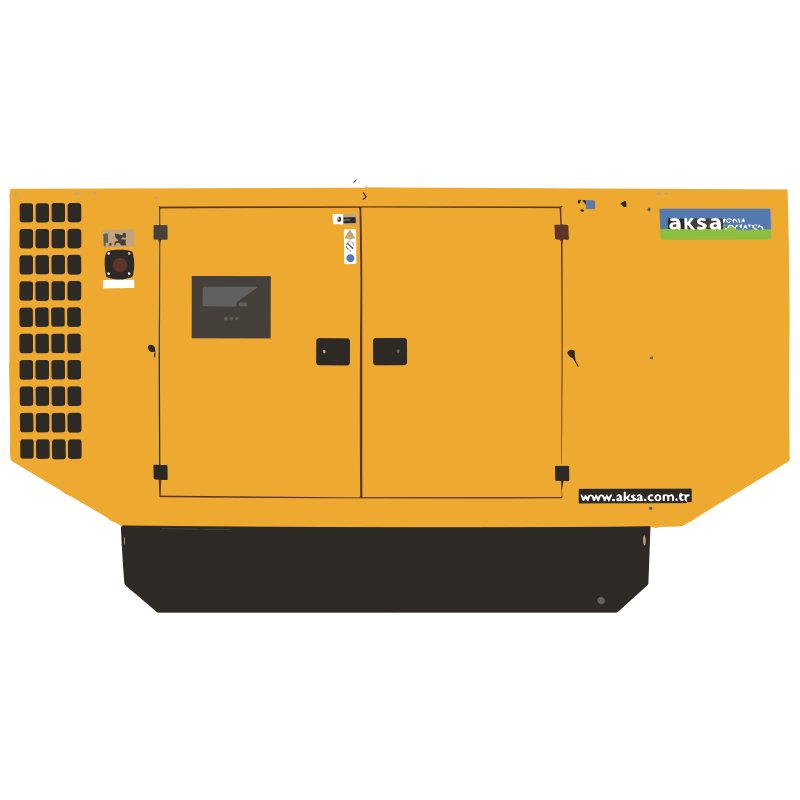

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
MS 60 | 3065 | 3934 | 1356 | 2140 | 470 |
STANDARD SPECIFICATIONS
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
OPTIONAL EQUIPMENTS
ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker
CONTROL SYSTEM
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
Power Redefined: Unveiling the 330 KVA Aksa Diesel Generator - Aksa AP330
In today's fast-paced world, where power outages can disrupt operations and events, having a reliable and robust generator is essential. Meet the 330 KVA Aksa Diesel Generator - Aksa AP330, a powerhouse that redefines power generation with its unparalleled capacity and unwavering reliability. In this blog post, we'll delve into the key features and benefits of the Aksa AP330 generator and discover why it's a game-changer in the realm of power solutions.
1. Reliability Beyond Compare
Aksa is a global leader in the power generation industry, known for delivering generators that you can count on. The Aksa AP330 continues this tradition by providing a consistent and dependable source of power, ensuring that your business or event continues without disruption, even during the most challenging circumstances.
2. Power Meets Efficiency
The Aksa AP330 is designed for maximum efficiency. With its substantial 330 KVA capacity, it's capable of meeting the high energy demands of various applications, from large-scale industries to commercial buildings. The efficient diesel engine guarantees that you get the most power output while optimizing fuel consumption, a critical factor for cost savings and environmental concerns.
3. Built to Last
The Aksa AP330 is engineered for durability. Its robust design and high-quality materials make it ideal for withstanding harsh environmental conditions. Whether you need it for a construction site, a remote location, or an outdoor event, this generator is more than up to the task.
4. Cutting-Edge Technology
The Aksa AP330 incorporates state-of-the-art technology, making it a versatile solution for a wide range of power needs. Features like automatic voltage regulation and soundproofing ensure that it operates quietly, reducing noise pollution and creating a comfortable working environment.
5. Easy Maintenance
Routine maintenance is essential for the longevity and reliability of any generator. The Aksa AP330 is designed with user-friendliness in mind, making it easy to conduct regular check-ups and maintenance tasks, ensuring the continued performance of the unit.
6. Environmentally Responsible
In an age where environmental concerns are paramount, Aksa takes steps to reduce emissions and minimize its environmental footprint. The AP330 is designed with eco-friendliness in mind, making it a responsible choice for power generation.
7. Versatile Applications
With its impressive 330 KVA capacity, the Aksa AP330 is versatile enough to serve a wide array of applications. Whether you need it for an industrial facility, a remote research station, or as a reliable backup power source for your business, this generator can handle the task with ease.
Conclusion
In the world of power generation, the 330 KVA Aksa Diesel Generator - Aksa AP330 is a symbol of reliability, efficiency, and environmental responsibility. Its advanced technology, ease of maintenance, and adaptability for various applications make it an invaluable asset for businesses and events. When you choose the Aksa AP330, you're not just investing in a generator; you're ensuring that your power needs are met with excellence and unwavering reliability. Trust in Aksa's legacy of quality and make the Aksa AP330 an integral part of your power solution.
