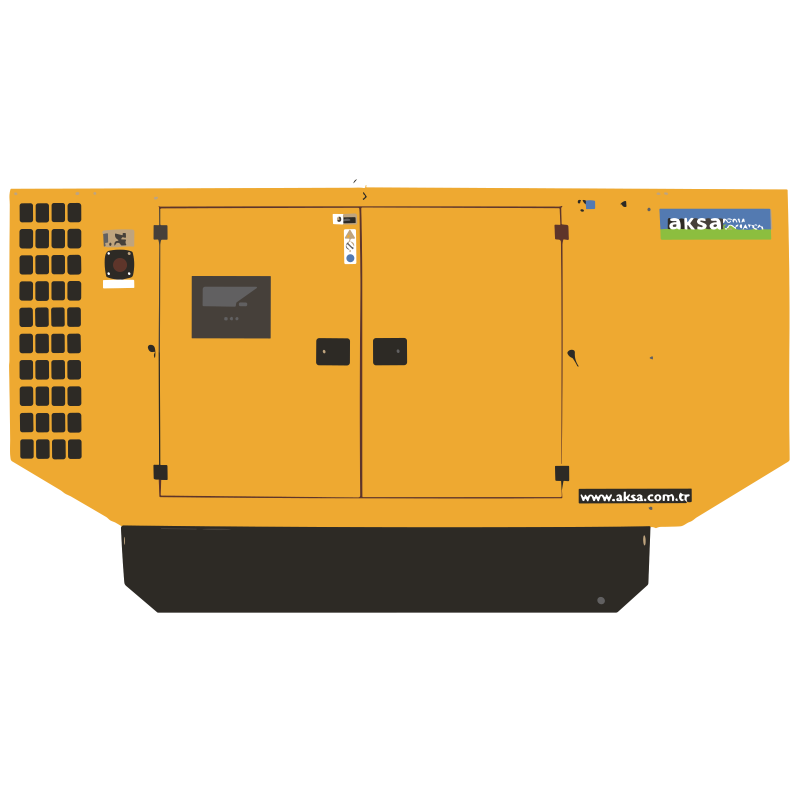

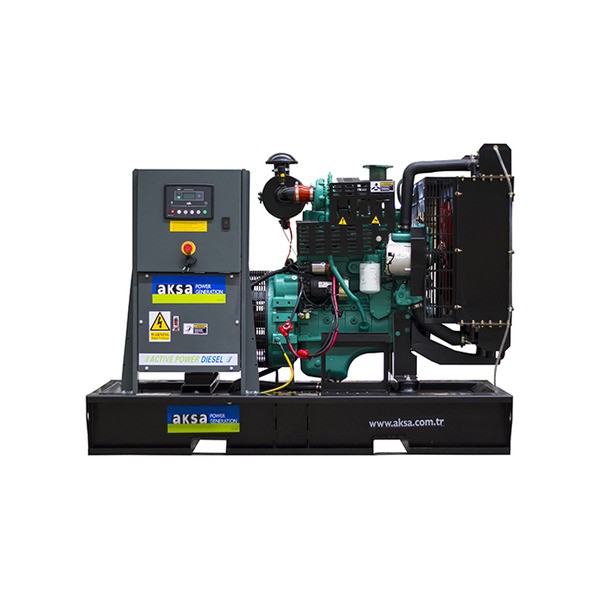

385 KVA Diesel Generator | AP385
EMI Available
Model: AP 385
Brand: AKSA
৳ 0.00 ৳ 0.00

Full Specification of AP 385 Diesel Generator With Details Guide!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

  • Product: PERKINS
  • Alternator: ECO 38-2L/4 C
  • CONTROL SYSTEM: DSE 7320

Certificate

  •   TS ISO 8528
  •   TS ISO 9001-2008
  •   CE
  •   SZUTEST
  •   2000/14/EC

General Characteristics

Model NameAP 385
Frequency (Hz)50
Fuel TypeDiesel
Engine Made and ModelPERKINS - 2206A-E13TAG2
Alternator Made and ModelMecc Alte - ECO 38-2L/4 C
Control Panel ModelDSE 7320
CanopyMS 80

3 Phase, 50 Hz, PF 0.8

VOLTAGESTANDBY RATING (ESP)PRIME RATING (PRP)Standby Amper
kVAkWkVAkW
400/231385308.0350280.0555.72
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

EnginePERKINS
Engine Model2206A-E13TAG2
NO. OF CYLINDERS AND BUILD6 cylinders - in line
BORE AND STROKEmm130 X 157
TOTAL DISPLACEMENTL12.5
AspirationTurbo Charged and Charge Air Cooled
COMPRESSION RATIO16.3:1
RATED SPEED (RPM)d/dk1500
OIL CAPACITYL40
Standby Power (kW/HP)368.4/493,83
Prime Power324.2/434,58
Block Heater QTY
1
Block Heater Power (Watt)
3000
Fuel Type
Diesel
Injection Type and System
Direct
Type of Fuel Pump
MEUI
Governor System
ECM
Operating Voltage (Vdc)
24 Vdc
Battery and Capacity (Qty/Ah)
2x120
Charge Alternator (A)
70
Cooling Method
Water Cooled
Cooling Fan Air Flow (m3/min)
563
Coolant Capacity (engine only / with radiator) (lt)
/51,4
Air Filter
Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
71
Fuel Cons. Prime With %75 Load (lt/hr)
54
Fuel Cons. Prime With %50 Load (lt/hr)
37

ALTERNATOR SPECIFICATIONS

ManufacturerMecc Alte
Alternator Made and ModelECO 38-2L/4 C
Frequency (Hz)Hz50
Power (kVA)kVA350
DESIGN  4 Pole,  Brushless
VOLTAGEV400
Phase3
A.V.R.DSR
Voltage Regulation(+/-)1
Insulation SystemH
ProtectionIP23
Rated Power Factor0.8
WEIGHT COMP. GENERATOR (Kg)895
COOLING AIR (m³/min)m332

SIZE and WEIGHT

Open TypeDRY WEIGHT (kg.)
(kg.)
LENGTH
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
320515502105850
CANOPYDRY WEIGHT (kg.)
(kg.)
LENGTH
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
MS 80
4215480716062485850

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE
• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker
CONTROL SYSTEM
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch

Unleash Unprecedented Power: The 385 KVA Diesel Generator - AP385

In the modern world, where seamless power supply is critical for industries and businesses, finding a generator that can meet high energy demands is a top priority. Enter the 385 KVA Diesel Generator - AP385, a formidable powerhouse that redefines power generation with its impressive capacity and unwavering reliability. In this blog post, we will delve into the key features and advantages of the AP385 generator, exploring why it's a game-changer in the realm of power solutions.

1. Reliability at Its Core

A generator's reliability is a non-negotiable factor, and the AP385 by AP is no exception. With a reputation for manufacturing dependable power solutions, AP delivers a generator that guarantees a continuous and consistent power source, even during unexpected power outages or emergencies.

2. Unmatched Power Efficiency

The AP385 is designed for optimal power efficiency. Its substantial 385 KVA capacity is more than capable of meeting the high energy demands of various applications, from industrial settings to commercial establishments. The generator's efficient diesel engine ensures that you receive maximum power output while minimizing fuel consumption, a crucial element for cost savings and environmental responsibility.

3. Built to Endure

The AP385 is engineered for longevity. Its sturdy construction and high-quality materials make it resilient in harsh environmental conditions. Whether you require it for a construction site, remote location, or an outdoor event, this generator is more than up to the task.

4. Cutting-Edge Technology

The AP385 boasts cutting-edge technology, making it a versatile solution for a wide range of power needs. Features like automatic voltage regulation and soundproofing ensure that it operates quietly, reducing noise pollution and creating a comfortable working environment.

5. User-Friendly Maintenance

Routine maintenance is essential for the continued performance and longevity of any generator. The AP385 is designed to simplify the maintenance process, making it easy to conduct regular check-ups and ensure the unit's reliability.

6. Environmental Responsibility

In an age where environmental concerns are paramount, the AP385 takes steps to reduce emissions and minimize its environmental footprint. This generator is designed with eco-friendliness in mind, making it a responsible choice for power generation.

7. Versatile Applications

With its remarkable 385 KVA capacity, the AP385 can serve a wide array of applications. Whether you need it for an industrial facility, a remote research station, or as a reliable backup power source for your business, this generator is versatile enough to meet your specific requirements.

Conclusion

In the world of power generation, the 385 KVA Diesel Generator - AP385 is a symbol of unwavering reliability, efficiency, and environmental responsibility. Its advanced technology, ease of maintenance, and adaptability for various applications make it a valuable asset for businesses and events. Choosing the AP385 is not just an investment in a generator; it's a commitment to meeting your power needs with excellence and trustworthiness. Trust in AP's legacy of quality and make the AP385 an integral part of your power solution.
