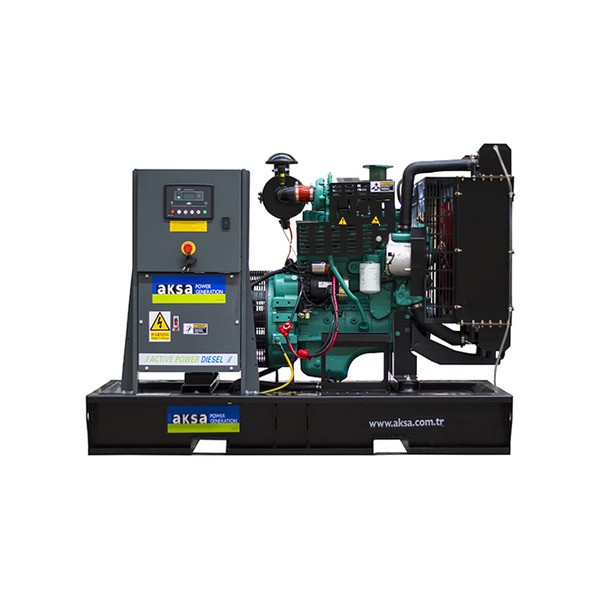

400 KVA Aksa Diesel Generator | Aksa AP400
EMI Available
Model: AP 400
Brand: AKSA
0.00 0.00

Full Specification of AP 400 Diesel Generator With Details Guide!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

  • Product: PERKINS
  • Alternator: ECO 40-1S/4 C
  • CONTROL SYSTEM: DSE 7320

Certificate

  •   TS ISO 8528
  •   TS ISO 9001-2008
  •   CE
  •   SZUTEST
  •   2000/14/EC

General Characteristics

Model NameAP 400
Frequency (Hz)50
Fuel TypeDiesel
Engine Made and ModelPERKINS - 2206A-E13TAG2
Alternator Made and ModelMecc Alte - ECO 40-1S/4 C
Control Panel ModelDSE 7320
CanopyMS 80

3 Phase, 50 Hz, PF 0.8

VOLTAGESTANDBY RATING (ESP)PRIME RATING (PRP)Standby Amper
kVAkWkVAkW
400/231400320.00350280.00577.37
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

EnginePERKINS
Engine Model2206A-E13TAG2
NO. OF CYLINDERS AND BUILD6 cylinders - in line
BORE AND STROKEmm130 X 157
TOTAL DISPLACEMENTL12.5
AspirationTurbo Charged and Charge Air Cooled
COMPRESSION RATIO16.3:1
RATED SPEED (RPM)d/dk1500
OIL CAPACITYL40
Standby Power (kW/HP)368.4/493,83
Prime Power324.2/434,58
Block Heater QTY
1
Block Heater Power (Watt)
3000
Fuel Type
Diesel
Injection Type and System
Direct
Type of Fuel Pump
MEUI
Governor System
ECM
Operating Voltage (Vdc)
24 Vdc
Battery and Capacity (Qty/Ah)
2x120
Charge Alternator (A)
70
Cooling Method
Water Cooled
Cooling Fan Air Flow (m3/min)
563
Coolant Capacity (engine only / with radiator) (lt)
/51,4
Air Filter
Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
71
Fuel Cons. Prime With %75 Load (lt/hr)
54
Fuel Cons. Prime With %50 Load (lt/hr)
37

ALTERNATOR SPECIFICATIONS

ManufacturerMecc Alte
Alternator Made and ModelECO 40-1S/4 C
Frequency (Hz)Hz50
Power (kVA)kVA400
DESIGN  4 Pole,  Brushless
VOLTAGEV400
Phase3
A.V.R.DER1
Voltage Regulation(+/-)0.5
Insulation SystemH
ProtectionIP23
Rated Power Factor0.8
WEIGHT COMP. GENERATOR (Kg)1047
COOLING AIR (m³/min)m354

SIZE and WEIGHT

Open TypeDRY WEIGHT (kg.)
(kg.)
LENGTH
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
3200320515502105850

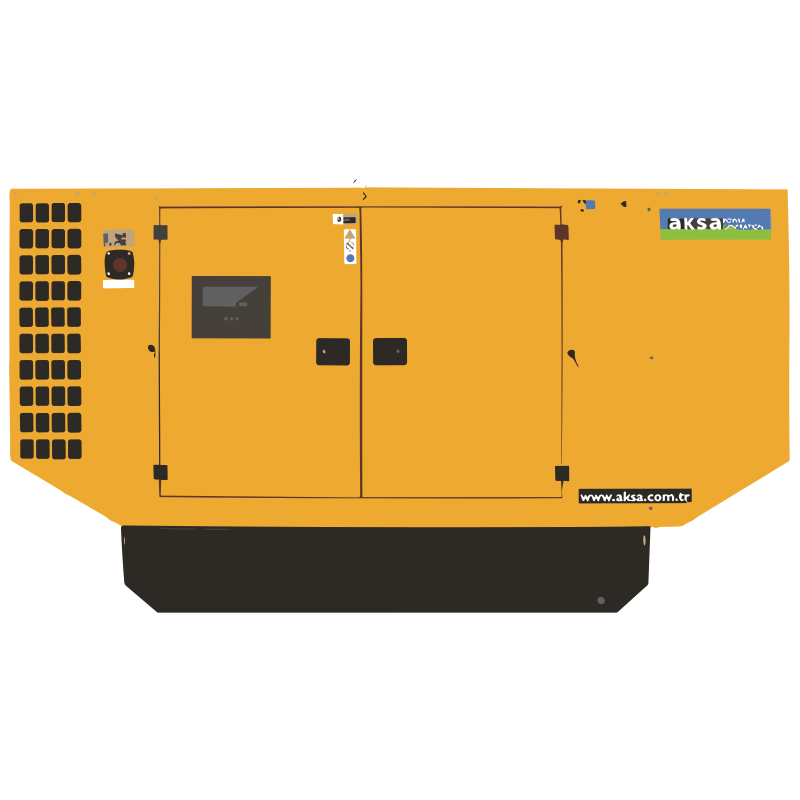

CANOPYDRY WEIGHT (kg.)
(kg.)
LENGTH
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
MS 80
4220480716062485850

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE
• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker
CONTROL SYSTEM
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch

Power Unleashed: The 400 KVA Aksa Diesel Generator - Aksa AP400

In today's world, where uninterrupted power supply is essential for businesses and industries to thrive, a reliable and robust generator is a lifeline. Enter the 400 KVA Aksa Diesel Generator - Aksa AP400, a powerhouse that redefines power generation with its impressive capacity and unwavering reliability. In this blog post, we will explore the key features and benefits of the Aksa AP400 generator and discover why it's a game-changer in the world of power solutions.

1. Uncompromising Reliability

Aksa, a global leader in the power generation industry, is renowned for delivering generators that businesses can depend on. The Aksa AP400 lives up to this reputation by providing a consistent and dependable power source, even during unexpected power outages and emergencies.

2. Power Meets Efficiency

The Aksa AP400 is designed for optimal power efficiency. With its substantial 400 KVA capacity, it's capable of meeting the high energy demands of various applications, from large industrial setups to commercial establishments. The generator's efficient diesel engine ensures that you get maximum power output while minimizing fuel consumption, which is vital for cost savings and environmental responsibility.

3. Built for Endurance

The Aksa AP400 is engineered for durability. Its robust construction and high-quality materials make it resilient in harsh environmental conditions. Whether you need it for a construction site, remote location, or outdoor event, this generator is up to the task.

4. Advanced Technology

The Aksa AP400 is equipped with state-of-the-art technology, making it a versatile solution for a wide range of power needs. Features like automatic voltage regulation and soundproofing ensure that it operates quietly, reducing noise pollution and creating a comfortable working environment.

5. Easy Maintenance

Routine maintenance is crucial for the longevity and reliability of any generator. The Aksa AP400 is designed with user-friendliness in mind, making it easy to conduct regular check-ups and maintenance tasks, ensuring the continued performance of the unit.

6. Environmental Responsibility

In an age where environmental concerns are paramount, Aksa takes steps to reduce emissions and minimize its environmental footprint. The AP400 is designed with eco-friendliness in mind, making it a responsible choice for power generation.

7. Versatile Applications

The impressive 400 KVA capacity of the Aksa AP400 makes it a versatile solution for a wide array of applications. Whether you need it for an industrial facility, a remote research station, or as a reliable backup power source for your business, this generator can meet your specific requirements with ease.

Conclusion

In the world of power generation, the 400 KVA Aksa Diesel Generator - Aksa AP400 stands as a symbol of reliability, efficiency, and environmental responsibility. Its advanced technology, ease of maintenance, and adaptability for various applications make it a valuable asset for businesses and events. Choosing the Aksa AP400 is not just an investment in a generator; it's a commitment to meeting your power needs with excellence and trustworthiness. Trust in Aksa's legacy of quality and make the Aksa AP400 an integral part of your power solution.
