72 KVA Aksa Diesel Generator | AP72
EMI Available
Model: AP 72
Brand: AKSA
0.00 0.00

Full Specification of AP 72 Diesel Generator With Details Guide!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


  • Product: PERKINS
  • Alternator: ECP 32‐1L/4 C
  • CONTROL SYSTEM: DSE 6120

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

  •   TS ISO 8528
  •   TS ISO 9001-2008
  •   CE
  •   SZUTEST
  •   2000/14/EC

General Characteristics

Model Name

AP 72

Frequency (Hz)

50

Fuel Type

Diesel

Engine Made and Model

PERKINS - 1104A-44TG1

Alternator Made and Model

Mecc Alte - ECP 32‐1L/4 C

Control Panel Model

DSE 6120

Canopy

AK 30


3 Phase, 50 Hz, PF 0.8

VOLTAGE

STANDBY RATING (ESP)

PRIME RATING (PRP)

Standby Amper

kVA

kW

kVA

kW

400/231

72

57.6

66

52.8

103.93

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.


ENGINE SPECIFICATIONS

Engine

PERKINS

Engine Model

1104A-44TG1

NO. OF CYLINDERS AND BUILD

4 cylinders - in line

BORE AND STROKE

mm

105 X 127

TOTAL DISPLACEMENT

L

4.4

Aspiration

Turbo Charged

COMPRESSION RATIO

17.25:1

RATED SPEED (RPM)

d/dk

1500

OIL CAPACITY

L

8

Standby Power (kW/HP)

65.6/87,93

Prime Power

59.6/79,89

Block Heater QTY

1

Block Heater Power (Watt)

750

Fuel Type

Diesel

Injection Type and System

Direct

Type of Fuel Pump

Delphi Rotary Type

Governor System

Mechanic

Operating Voltage (Vdc)

12 Vdc

Battery and Capacity (Qty/Ah)

1x55

Charge Alternator (A)

65

Cooling Method

Water Cooled

Coolant Capacity (engine only / with radiator) (lt)

13

Air Filter

Dry Type

Fuel Cons. Prime With %100 Load (lt/hr)

14.8

Fuel Cons. Prime With %75 Load (lt/hr)

11.2

Fuel Cons. Prime With %50 Load (lt/hr)

8


ALTERNATOR SPECIFICATIONS

Manufacturer

Mecc Alte

Alternator Made and Model

ECP 32‐1L/4 C

Frequency (Hz)

Hz

50

Power (kVA)

kVA

75

DESIGN

  4 Pole,  Brushless

VOLTAGE

V

400

Phase

3

A.V.R.

DSR

Voltage Regulation

(+/-)

1

Insulation System

H

Protection

IP23

Rated Power Factor

0.8

WEIGHT COMP. GENERATOR (Kg)

244

COOLING AIR (m³/min)

m3

15.7


SIZE and WEIGHT

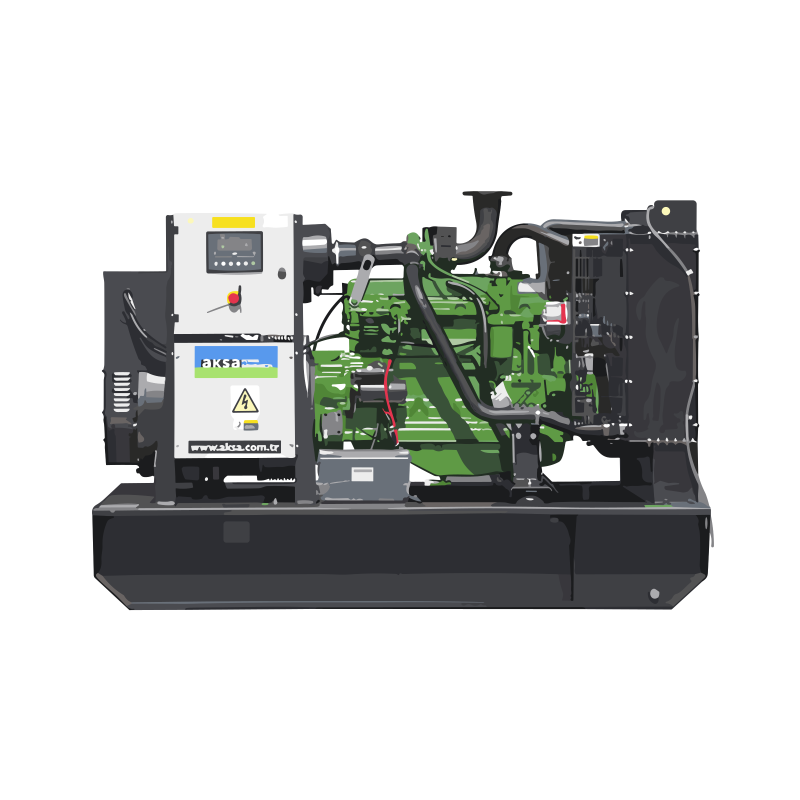

Open Type

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

910

1780

950

1312

130

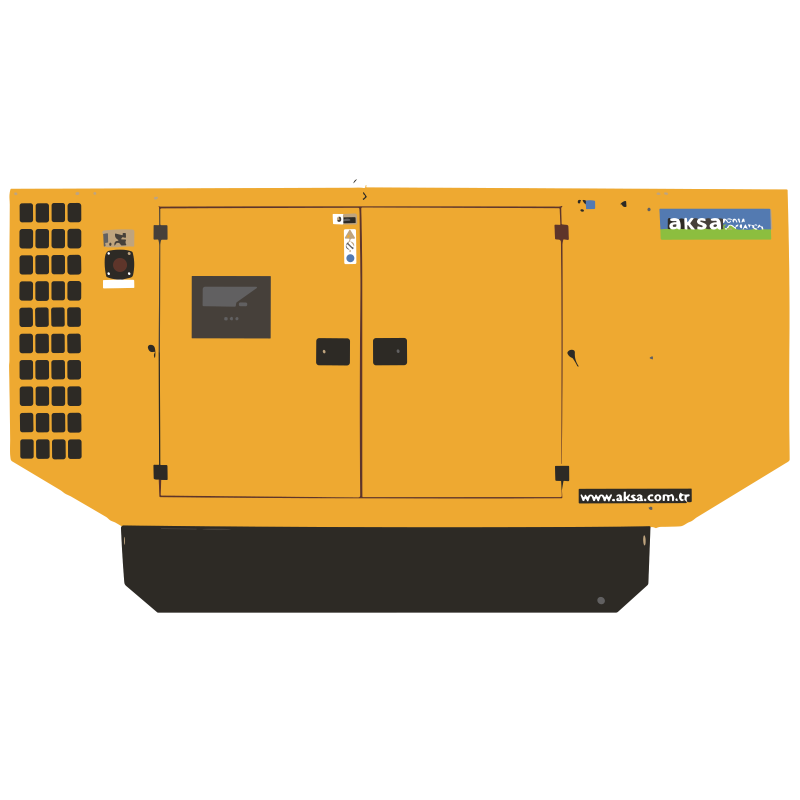

CANOPY

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

AK 30

1165

2472

1010

1553

130


STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE
• Fuel-Water Seperator Filter
• Low water level alarm
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker

CONTROL SYSTEM
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch

Unleash Power and Reliability with the 72 KVA Aksa Diesel Generator - Model AP72

In an age where constant access to electricity is essential for businesses, industries, and homes, power disruptions can be a significant hindrance. The 72 KVA Aksa Diesel Generator, Model AP72, emerges as a dependable solution to keep the lights on and operations running smoothly. Let's delve into the world of the AP72 Diesel Generator and explore how it can power your diverse needs.

The AP72 Diesel Generator: A Comprehensive Overview

Aksa, a global leader in power generation solutions, offers the AP72 Diesel Generator as a robust addition to its diverse product line. The AP72, boasting an impressive 72 KVA (Kilovolt-Amperes) rating, is engineered to meet demanding power requirements across various applications.

Key Features of the AP72 Aksa Diesel Generator:

  1. High Power Output: The AP72 is built for substantial power generation, making it an ideal choice for applications that demand significant energy supply. With its 72 KVA rating, it can efficiently cater to a wide range of power needs.
  2. Primary and Standby Power: Versatility is a cornerstone of the AP72. It can serve as a primary power source, delivering continuous energy to remote locations or areas with unreliable grids. Simultaneously, it excels as a backup power supply, ensuring uninterrupted operations during emergencies or outages.
  3. Digital Control Panel: The AP72 features a sophisticated digital control panel, providing real-time data on vital parameters such as voltage, frequency, and operating hours. This empowers operators to monitor and maintain control effectively.
  4. Fuel Efficiency: Fuel costs are a significant consideration in power generation. The AP72 is designed for fuel efficiency, meaning it consumes less diesel while providing maximum power. This not only reduces operational expenses but also contributes to environmental sustainability.
  5. Robust Construction and Weather Resistance: Engineered for durability, the AP72 can withstand a spectrum of environmental conditions, ensuring reliable operation even in harsh weather or extreme temperatures.
  6. Quiet Operation: Noise pollution is a concern in many settings. The AP72 is meticulously designed for quiet operation, making it a fitting choice for locations where noise restrictions are in place.

Applications of the AP72 Diesel Generator

The AP72 Aksa Diesel Generator's versatility makes it suitable for a wide range of applications:

  1. Commercial and Industrial Uses: For businesses and industries, the AP72 ensures uninterrupted power, preventing costly downtime and production interruptions.
  2. Construction Sites: The AP72's portability and ruggedness make it a reliable power source for construction sites, where a continuous energy supply is critical for machinery and equipment.
  3. Healthcare Facilities: Hospitals and healthcare establishments require consistent power to ensure patient well-being. The AP72 serves as a dependable backup power source for life-saving equipment.
  4. Agricultural Operations: Farms and agricultural activities can rely on the AP72, especially in rural areas where the grid may be unreliable. It can power irrigation systems, machinery, and more.
  5. Data Centers: In our tech-driven world, data centers must function without interruption. The AP72 ensures that servers and critical infrastructure remain operational during power outages.
  6. Residential Backup: For homeowners, the AP72 provides peace of mind during storms or other emergencies, keeping essential appliances and lighting operational.

Conclusion

In a world where power disruptions can have substantial consequences, the 72 KVA Aksa Diesel Generator, Model AP72, stands as a reliable and powerful solution. Its combination of remarkable power capacity, dependability, and fuel efficiency makes it an intelligent choice for a wide array of applications. When it comes to safeguarding your business, construction project, or home against power interruptions, the AP72 ensures that the lights stay on, machinery keeps running, and operations continue without a hitch.
