Full Specification of AC 880 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: CUMMINS
- Alternator: ECO 43-1S/4 A
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 880 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - QSK23-G3 |
Alternator Made and Model | Mecc Alte - ECO 43-1S/4 A |
Control Panel Model | DSE 7320 |
Canopy | AK 90 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 880 | 704.0 | 800 | 640.0 | 1270.21 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | QSK23-G3 | |
NO. OF CYLINDERS AND BUILD | 6 cylinders - in line | |
BORE AND STROKE | mm | 170 X 170 |
TOTAL DISPLACEMENT | L | 23.15 |
Aspiration | Turbo Charged and Charge Air Cooled | |
COMPRESSION RATIO | 16.0:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 103 |
Standby Power (kW/HP) | 768/1030 | |
Prime Power | 701/940 | |
Block Heater QTY | 1 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Cummins HPI-PT | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 2x143 | |
Charge Alternator (A) | 35 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 625.8 | |
Coolant Capacity (engine only / with radiator) (lt) | 46,5/120 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 161 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 121 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 85 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 43-1S/4 A | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 820 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DER1 | |
Voltage Regulation | (+/-) | 0.5 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 1920 | |
COOLING AIR (m³/min) | m3 | 90 |
SIZE and WEIGHT

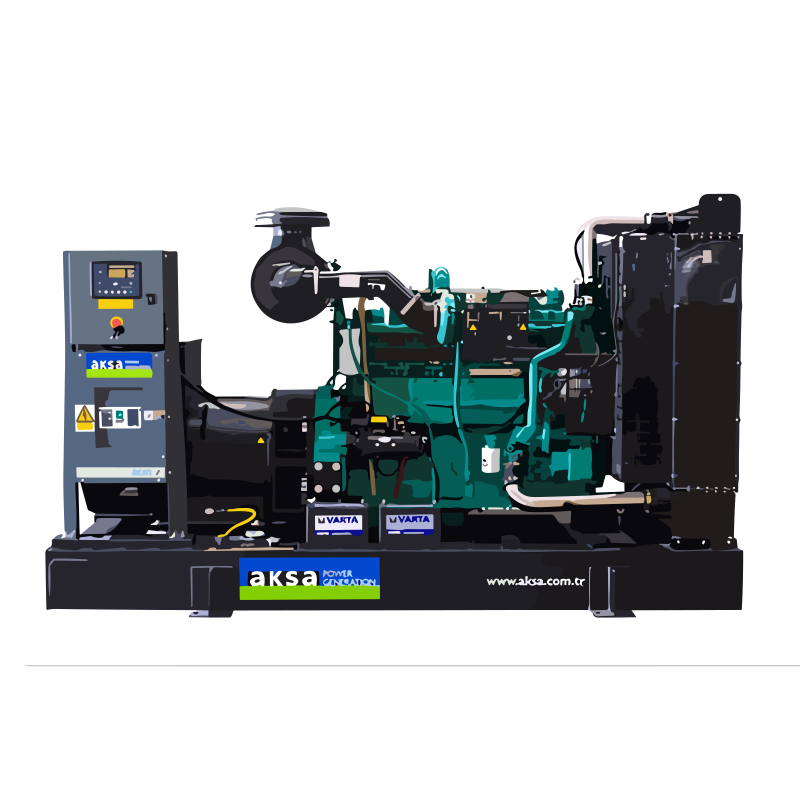

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
5950 | 3950 | 1705 | 2225 | 1500 | |

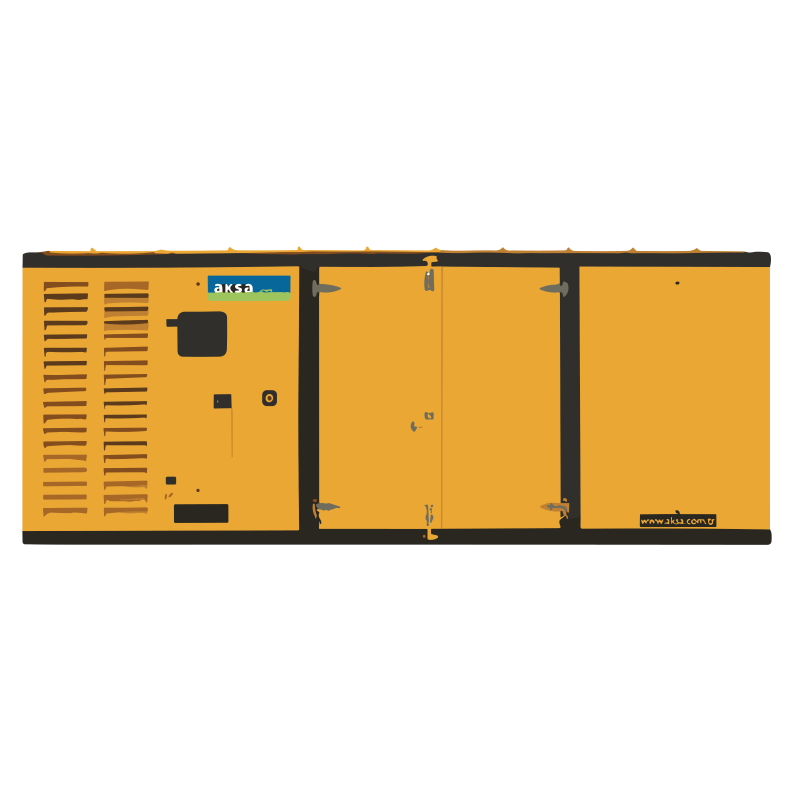

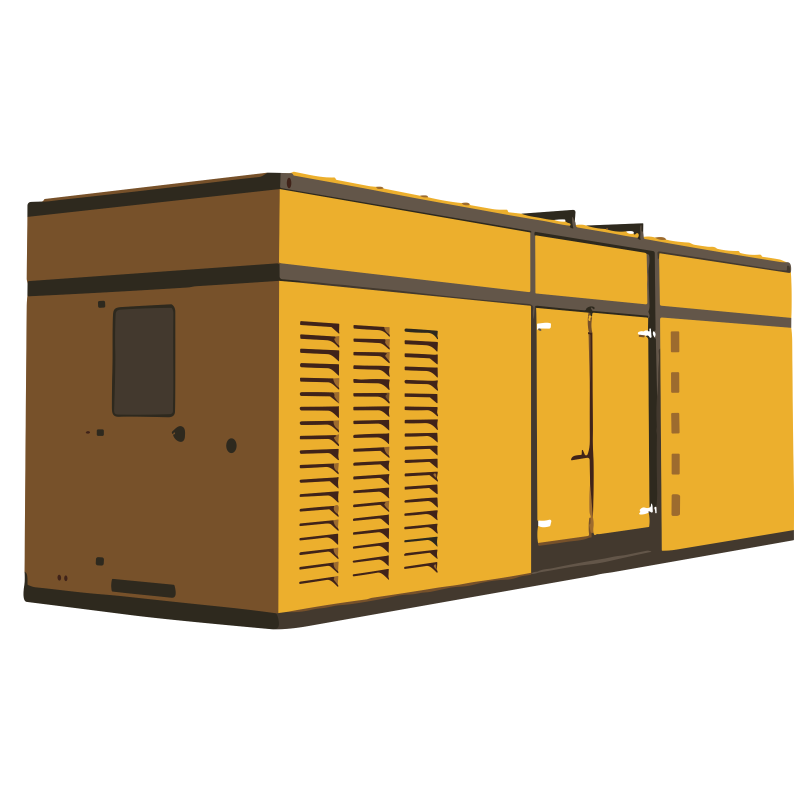

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 90 | 9100 | 6500 | 2200 | 2350 | 1100 |
STANDARD SPECIFICATIONS
Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Fuel-Water Seperator Filter• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C
Unleashing the Power: The AC 880 KVA Diesel Generator
In a world that relies heavily on electricity, power outages can be more than just an inconvenience – they can disrupt business operations, halt critical medical equipment, and even affect our daily lives. To combat this vulnerability, industrial and commercial sectors often turn to backup generators, and one name that stands out in this field is the AC 880 KVA Diesel Generator.
In this blog, we will delve into the features, benefits, and applications of the AC 880 KVA Diesel Generator, showcasing why it's a top choice for those who demand reliability and performance.
Powerful Performance
The AC 880 KVA Diesel Generator is a true powerhouse. With a capacity of 880 KVA (kilovolt-ampere), it's more than capable of providing ample electricity to a wide range of applications. Whether you're running a manufacturing facility, a data center, a hospital, or need backup power for a large event, this generator is designed to meet your needs.
Fuel Efficiency
Diesel generators have long been known for their fuel efficiency, and the AC 880 KVA Diesel Generator is no exception. Diesel fuel is readily available, and these generators are designed to convert it into electricity with maximum efficiency. This means lower operating costs in the long run, making it an excellent choice for businesses looking to control their energy expenses.
Reliability You Can Count On
When the power goes out, you need to know that your backup generator will start up and keep your operations running smoothly. The AC 880 KVA Diesel Generator is renowned for its reliability. Built with high-quality components and advanced engineering, it's designed to handle continuous operation and provide a steady power supply during extended outages.
Adaptable and Versatile
This generator is adaptable to various environments and applications. It can be installed as a primary power source for remote locations or as a standby generator for locations with unreliable power grids. Its versatility makes it an ideal choice for a variety of industries, including construction, agriculture, healthcare, and telecommunications.
Advanced Control and Monitoring
Modern technology has made generator operation and maintenance more convenient than ever. The AC 880 KVA Diesel Generator comes equipped with advanced control systems that allow for remote monitoring, automated testing, and seamless integration with your existing infrastructure. This ensures that you're always in control of your backup power supply.
Conclusion
The AC 880 KVA Diesel Generator is a reliable, efficient, and versatile solution for businesses and industries that cannot afford power interruptions. With its robust performance, fuel efficiency, and advanced control systems, it has rightfully earned its place as a top choice for backup power.
Investing in a generator of this caliber is not just about keeping the lights on; it's about safeguarding your business, your data, and your operations. The AC 880 KVA Diesel Generator is a testament to the progress of technology, making it possible for us to maintain our way of life in the face of unexpected power disruptions.
