Full Specification of AC 1100 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: CUMMINS
- Alternator: ECO 43-1M/4 A
- CONTROL SYSTEM: DSE 7320
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 1100 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - QST30-G4 |
Alternator Made and Model | Mecc Alte - ECO 43-1M/4 A |
Control Panel Model | DSE 7320 |
Canopy | AK 96 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 1100 | 880.0 | 1000 | 800.0 | 1587.76 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | QST30-G4 | |
NO. OF CYLINDERS AND BUILD | 12 cylinders - V type | |
BORE AND STROKE | mm | 140 X 165 |
TOTAL DISPLACEMENT | L | 30.48 |
Aspiration | Turbo Charged | |
COMPRESSION RATIO | 14.0:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 154 |
Standby Power (kW/HP) | 970/1300 | |
Prime Power | 880/1180 | |
Block Heater QTY | 2 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Bosch P8500 LLA | |
Governor System | ECM | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 2x143 | |
Charge Alternator (A) | 35 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 1169 | |
Coolant Capacity (engine only / with radiator) (lt) | 79/371 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 202 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 151 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 102 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 43-1M/4 A | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 1025 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DER1 | |
Voltage Regulation | (+/-) | 0.5% |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 2275 | |
COOLING AIR (m³/min) | m3 | 90 |
SIZE and WEIGHT

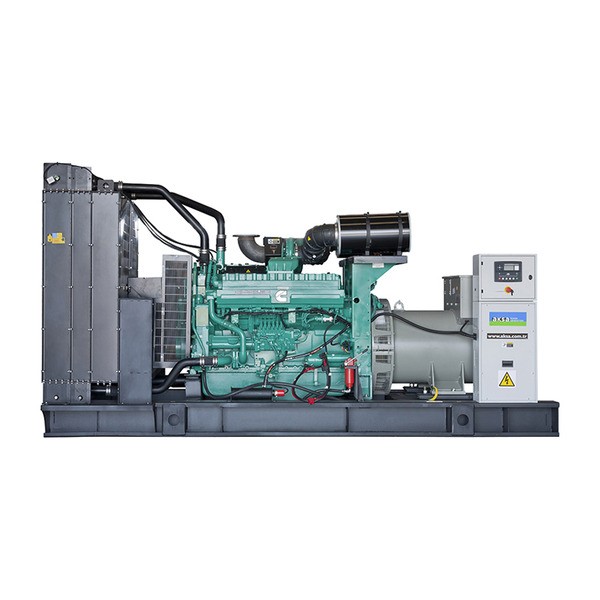

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
6770 | 3980 | 1970 | 2383 | 1500 | |

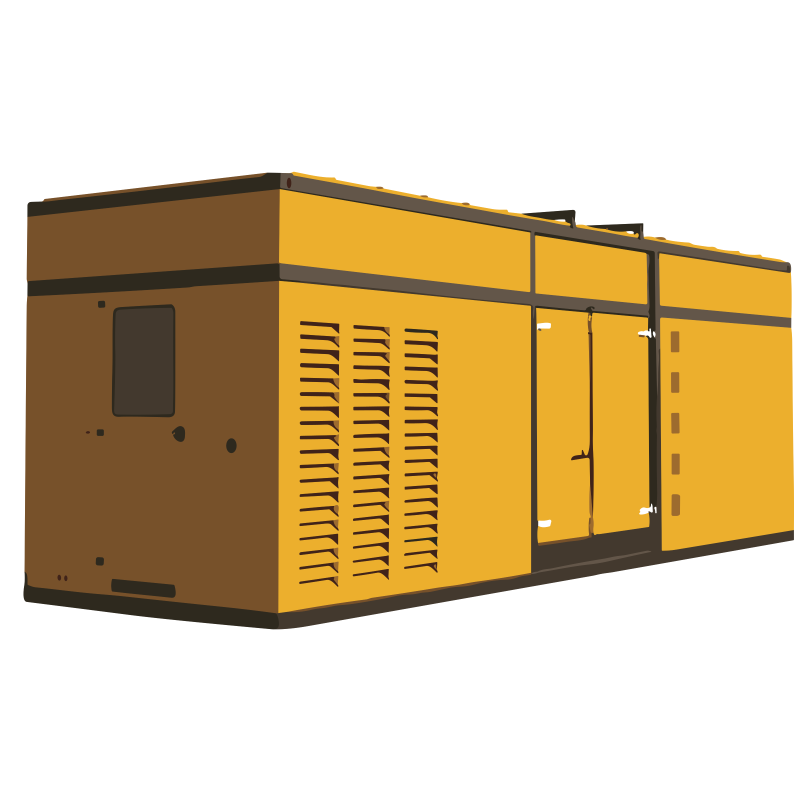

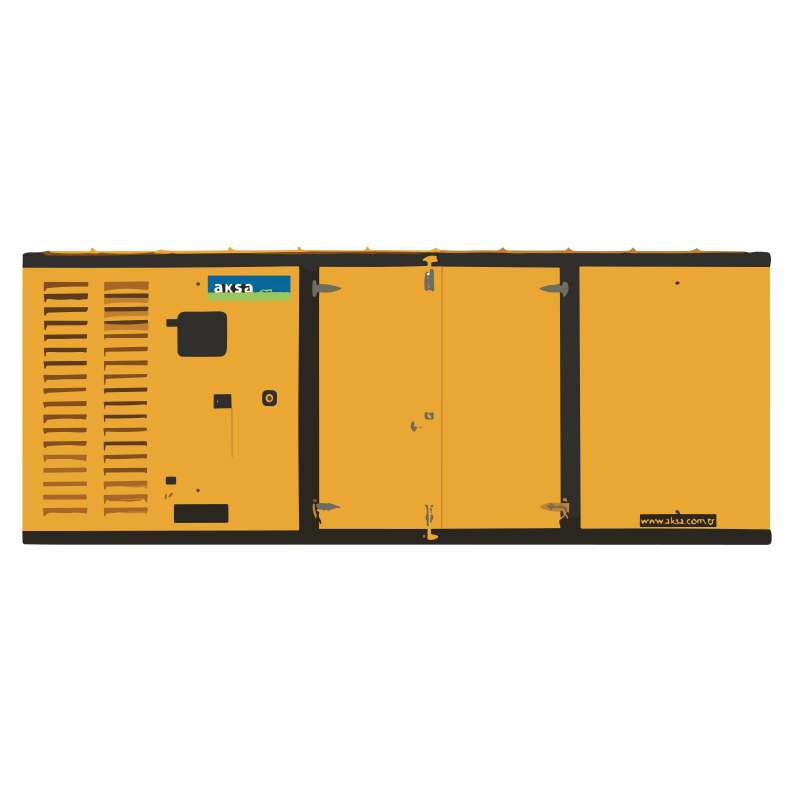

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 96 | 11000 | 7500 | 2300 | 2508 | 1500 |
STANDARD SPECIFICATIONS
Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Remote Radiator Cooling• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C
AC1100 Diesel Generator by Aksa: Power Redefined with a 1100 KVA Cummins Engine
In a world where electricity is the lifeblood of modern civilization, a reliable source of power is invaluable. The AC1100 Diesel Generator by Aksa, equipped with an impressive 1100 KVA capacity and a Cummins engine, is a force to be reckoned with in the realm of backup power. In this blog, we'll explore the features, applications, and the unique advantages of the AC1100 Diesel Generator, showcasing why it's the preferred choice for those who demand uninterrupted and dependable electricity.
Unleashing Raw Power
The AC1100 Diesel Generator is a true powerhouse, capable of delivering a whopping 1100 KVA of electricity. Whether you're managing a large industrial facility, a data center, or need electricity for a massive event, this generator is designed to handle even the most demanding loads with ease.
Fuel Efficiency at Its Best
Diesel generators are renowned for their fuel efficiency, and the AC1100 Diesel Generator is no exception. With a Cummins engine, it efficiently converts diesel fuel into electricity, ensuring not only a stable power supply but also cost-effective operation over the long term.
Unmatched Reliability
When power outages occur, you need a generator that you can trust to spring into action. The AC1100 Diesel Generator is celebrated for its reliability. It is meticulously engineered with premium components to ensure continuous operation and provide a stable power supply during prolonged outages, giving you peace of mind when you need it most.
Versatility Beyond Compare
From construction sites in remote locations to critical infrastructure facilities, the AC1100 Diesel Generator seamlessly adapts to various environments and applications. It can serve as a primary power source or stand as a robust backup solution, making it an ideal choice for a wide range of industries, including healthcare, agriculture, telecommunications, and more.
Advanced Control and Monitoring
Modern technology has revolutionized generator operation and maintenance. The AC1100 Diesel Generator comes equipped with advanced control systems that enable remote monitoring, automated testing, and easy integration into your existing infrastructure. This empowers you with full control over your backup power supply, no matter where you are.
The Ultimate Power Solution
Investing in a generator like the AC1100 Diesel Generator by Aksa is not just about keeping the lights on; it's about safeguarding your business, data, and operations. With its exceptional performance, fuel efficiency, and cutting-edge control systems, it's not just a generator; it's a comprehensive power solution.
The AC1100 Diesel Generator demonstrates how advanced technology is enabling us to maintain our way of life by providing a dependable power source during unforeseen disruptions. When your business and operations depend on a consistent power supply, the AC1100 by Aksa with its Cummins engine is the choice that will never let you down. It's the ultimate answer to your power needs, ensuring you're always in control.
