Full Specification of AC 1100 K Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: CUMMINS
- Alternator: ECO 43-1M/4 A
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 1100 K |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - KTA38-G14 |
Alternator Made and Model | Mecc Alte - ECO 43-1M/4 A |
Control Panel Model | DSE 7320 |
Canopy | AK 96 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 1100 | 880.0 | 1000 | 800.0 | 1587.76 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | KTA38-G14 | |
NO. OF CYLINDERS AND BUILD | 12 cylinders - V type | |
BORE AND STROKE | mm | 159 X 159 |
TOTAL DISPLACEMENT | L | 37.8 |
Aspiration | Turbo Charged and After Cooled | |
COMPRESSION RATIO | 13.9:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 135 |
Standby Power (kW/HP) | 970/1300 | |
Prime Power | 880/1180 | |
Block Heater QTY | 2 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Cummins PT | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 4x120 | |
Charge Alternator (A) | 35 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 1489 | |
Coolant Capacity (engine only / with radiator) (lt) | 124/350 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 209 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 161 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 113 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 43-1M/4 A | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 1025 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DER1 | |
Voltage Regulation | (+/-) | 0.5% |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 2275 | |
COOLING AIR (m³/min) | m3 | 90 |
SIZE and WEIGHT

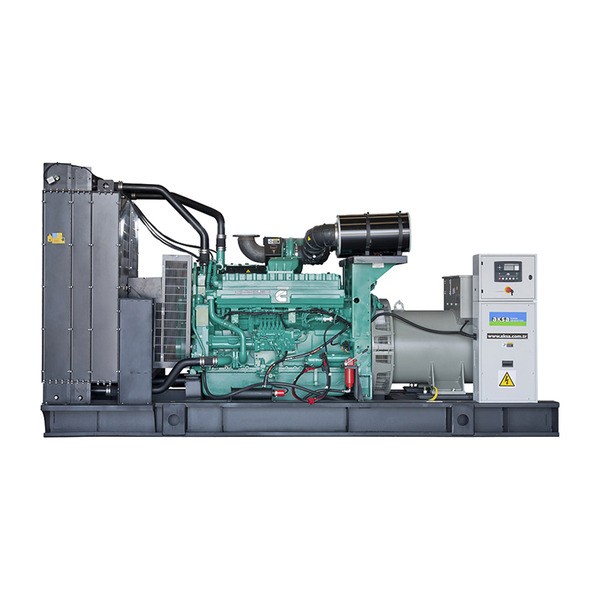

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
8600 | 4366 | 1770 | 2370 | 1500 | |

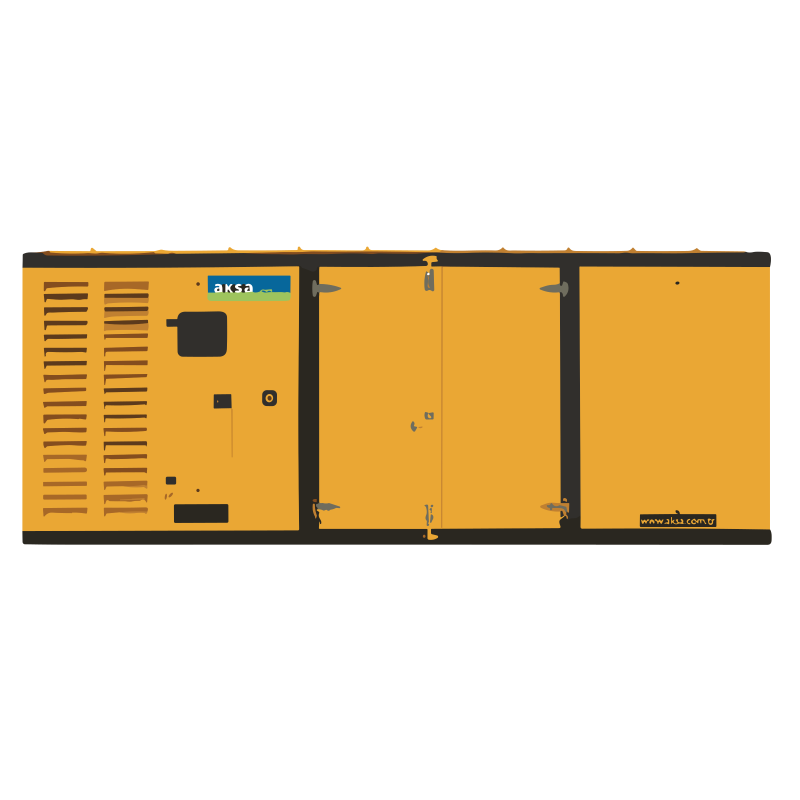

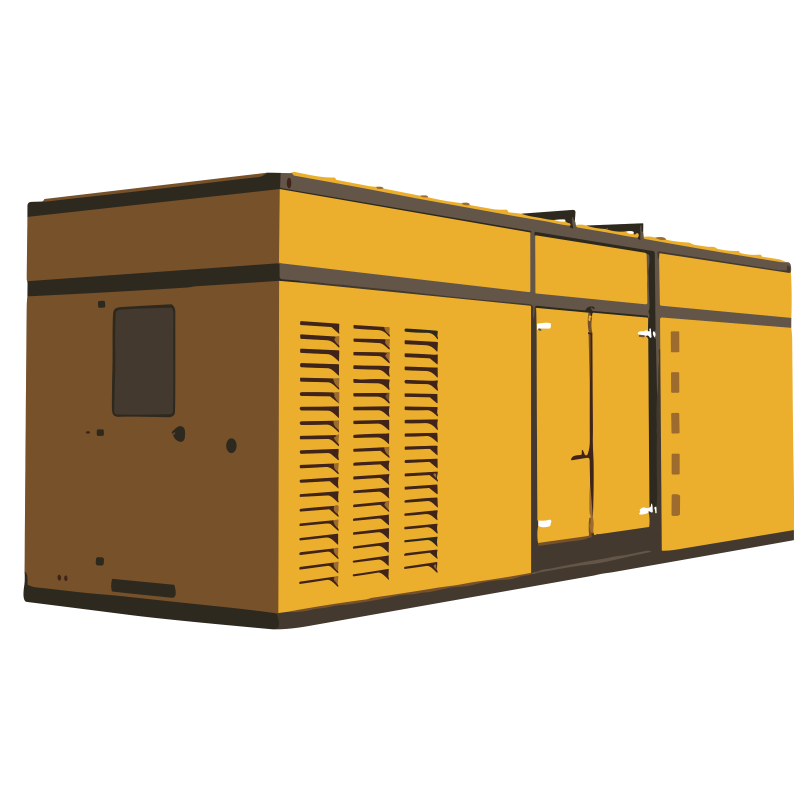

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 96 | 12250 | 7500 | 2300 | 2508 | 1500 |
STANDARD SPECIFICATIONS
Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Remote Radiator Cooling• Fuel-Water Separator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronizing and power control system ( multi gen-set Parallel )• Parallels system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C
AC1100K Diesel Generator by Aksa: Unveiling Unmatched Power
In a world that thrives on electricity, a reliable and robust power source is crucial for businesses, industries, and events. The AC1100K Diesel Generator by Aksa, with its massive 1100 KVA capacity, is a formidable player in the field of backup power. This blog explores the features, applications, and benefits of the AC1100K Diesel Generator, demonstrating why it's the go-to choice for those who demand uninterrupted power.
Raw Power Unleashed
The AC1100K Diesel Generator is a true powerhouse, offering an impressive 1100 KVA of electricity. Whether you're operating a large manufacturing facility, a data center, or need power for a massive outdoor event, this generator is equipped to handle the load.
Exceptional Fuel Efficiency
Diesel generators have long been celebrated for their fuel efficiency, and the AC1100K is no exception. Diesel fuel is widely available, and these generators are engineered to convert it into electricity with exceptional efficiency. This not only ensures consistent power but also keeps operational costs in check.
Reliability Redefined
When power outages strike, you need a generator you can rely on. The AC1100K Diesel Generator is renowned for its reliability. Crafted with premium components and cutting-edge engineering, it's designed to function continuously and provide a stable power supply during prolonged outages. It's a dependable partner in times of crisis.
Versatility Unmatched
From remote construction sites to major industrial complexes, the AC1100K Diesel Generator adapts seamlessly to various environments and applications. It can serve as a primary power source or stand as a robust backup solution, making it an ideal choice for diverse industries, including healthcare, agriculture, telecommunications, and more.
Smart Control and Monitoring
Modern technology has transformed generator operation and maintenance. The AC1100K Diesel Generator comes equipped with advanced control systems that enable remote monitoring, automated testing, and integration into existing infrastructure. This empowers you with full control over your backup power supply, no matter where you are.
The Bottom Line
Investing in a generator like the AC1100K Diesel Generator by Aksa is not merely about keeping the lights on; it's about ensuring the continuity of your business and operations. With its exceptional performance, fuel efficiency, and state-of-the-art control systems, it's not just a generator; it's a comprehensive power solution.
The AC1100K Diesel Generator showcases how advanced technology is helping us maintain our way of life by providing a reliable power source during unforeseen disruptions. When your business, data, and operations are at stake, the AC1100K by Aksa is the choice for unwavering power that will never let you down.
