Full Specification of AC 550 Diesel Generator With Details Guide!
- Product: CUMMINS
- Alternator: ECO 40-3S/4 C
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 550 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - QSX15-G8 |
Alternator Made and Model | Mecc Alte - ECO 40-3S/4 C |
Control Panel Model | DSE 7320 |
Canopy | MS 80 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 550 | 440.0 | 500 | 400.0 | 793.88 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | QSX15-G8 | |
NO. OF CYLINDERS AND BUILD | 6 cylinders - in line | |
BORE AND STROKE | mm | 137 X 169 |
TOTAL DISPLACEMENT | L | 14.9 |
Aspiration | Turbo Charged and Charge Air Cooled | |
COMPRESSION RATIO | 17.2:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 90.8 |
Standby Power (kW/HP) | 500/670 | |
Prime Power | 444/595 | |
Block Heater QTY | 1 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | XPI | |
Type of Fuel Pump | HPCR (High Pressure Common Rail) | |
Governor System | ECM | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 2x120 | |
Cooling Method | Water Cooled | |
Charge Alternator (A) | 30 | |
Coolant Capacity (engine only / with radiator) (lt) | 33/66 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 101 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 80 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 56 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 40-3S/4 C | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 500 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DER1 | |
Voltage Regulation | (+/-) | 0.5% |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 1534 | |
COOLING AIR (m³/min) | m3 | 54 |
SIZE and WEIGHT

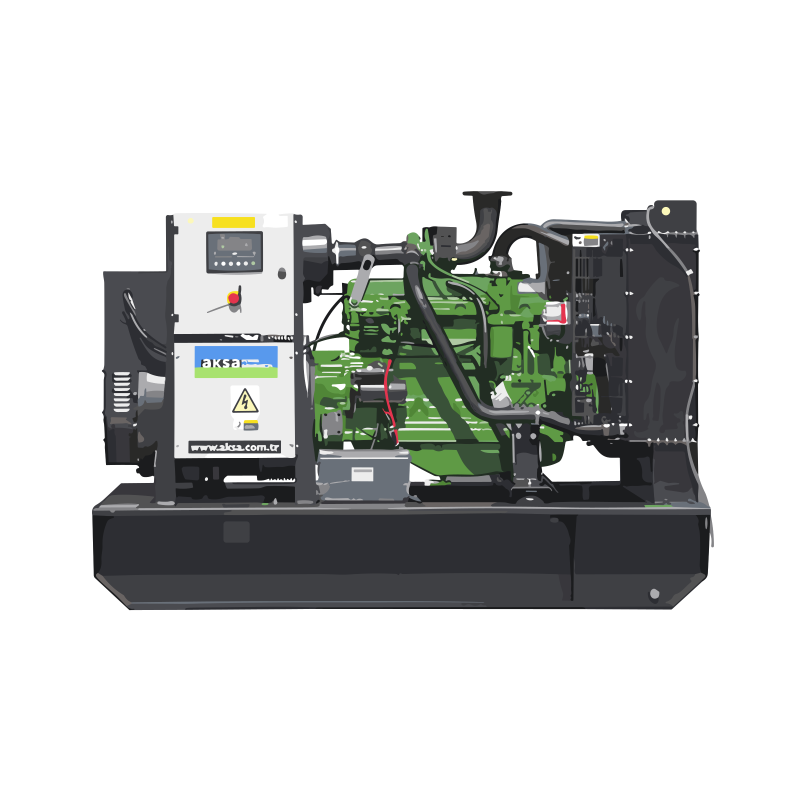

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
3850 | 3380 | 1550 | 2100 | 850 | |

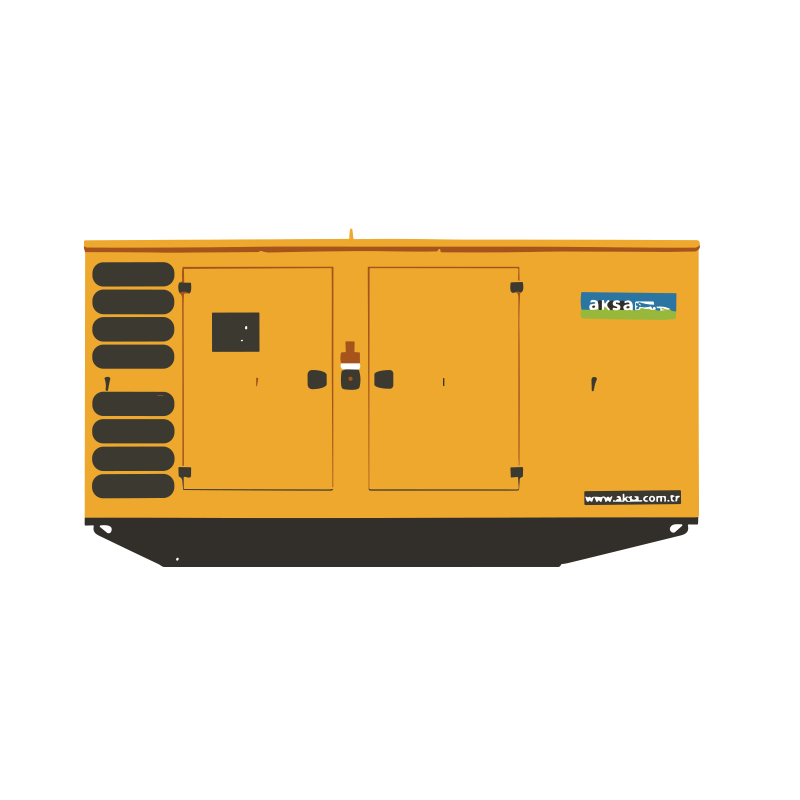

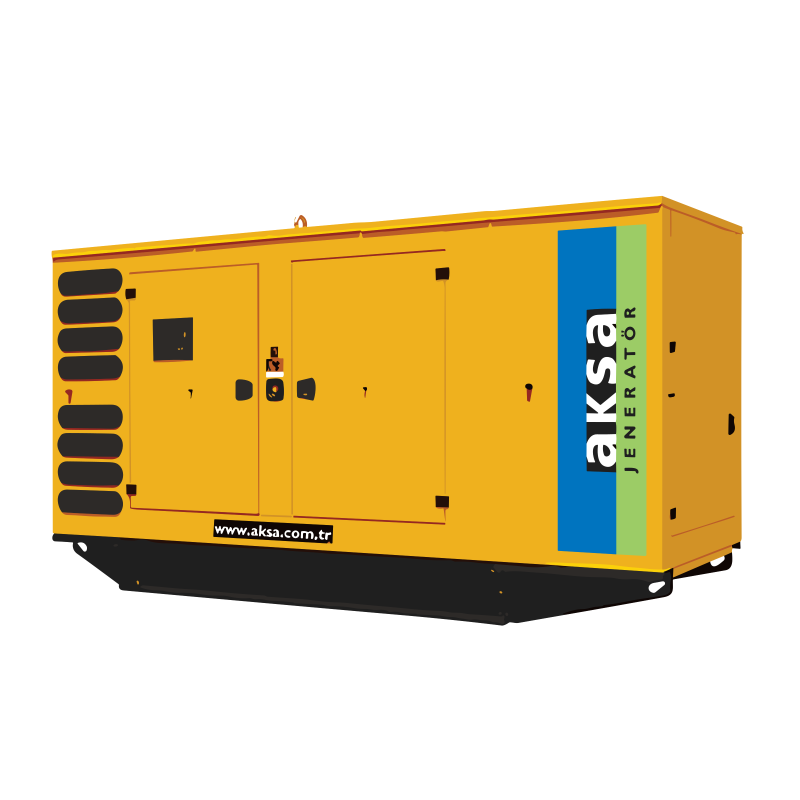

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
MS 80 | 4860 | 4807 | 1606 | 2485 | 850 |
STANDARD SPECIFICATIONS
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Fuel-Water Separator Filter• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronizing and power control system ( multi gen-set Parallel )• Transition synchronization with mains
• Remote relay output
• Alarm output relays
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Double wall chassis
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
• Battery heater
• Automatic transfer switch
Powering Progress: The Aksa AC550 Diesel Generator in Bangladesh
In a country like Bangladesh, where power outages are a persistent challenge, having a reliable source of backup electricity is not just a convenience but a necessity. The Aksa AC550 Diesel Generator is rapidly gaining recognition as a robust solution to address these power woes. In this blog post, we will explore the key features and benefits of the Aksa AC550 Diesel Generator and discuss why it is swiftly becoming the preferred choice for ensuring a consistent power supply in Bangladesh.
Key Features of the Aksa AC550 Diesel Generator
- High Power Output: The Aksa AC550 is a powerhouse of a generator with an impressive capacity of [X] kilowatts. Its substantial power output makes it suitable for a wide range of applications, from households and small businesses to industrial facilities.
- Durable Diesel Engine: Equipped with a rugged and fuel-efficient diesel engine, the Aksa AC550 ensures both long-lasting performance and cost-effective operation. Diesel engines are known for their reliability, making them an excellent choice in areas with frequent power interruptions.
- Automatic Transfer Switch (ATS): The built-in ATS system guarantees a seamless transition between the main power supply and the generator, ensuring that your home or business remains operational even during sudden power failures.
- Low Noise Operation: The Aksa AC550 is designed with noise reduction in mind, operating quietly to minimize noise pollution. This feature makes it an ideal choice for urban and residential areas where noise can be a concern.
- Fuel Efficiency: The Aksa AC550 is engineered for fuel efficiency, leading to significant long-term cost savings. In a country where electricity prices can be high, this is an attractive advantage.
Why Choose the Aksa AC550 Diesel Generator in Bangladesh?
- Reliable Power Supply: Bangladesh's power grid often experiences instability, leading to frequent power cuts. The Aksa AC550 offers a dependable backup power source, ensuring uninterrupted power supply to keep your daily operations running smoothly.
- Economic Viability: While the initial investment in a generator may seem substantial, it can lead to considerable cost savings over time. Diesel generators, like the Aksa AC550, are known for their fuel efficiency, making them an economically sound choice.
- Versatility: The Aksa AC550 is designed to cater to a wide array of power requirements, from small households to large industrial setups. Its high power output and adaptability make it suitable for diverse applications.
- Environmental Responsibility: Modern diesel generators, including the Aksa AC550, adhere to strict emissions standards and incorporate technologies that reduce harmful emissions. This ensures reliable power without compromising on environmental responsibility.
Conclusion
The Aksa AC550 Diesel Generator stands as a powerful solution to the ongoing issue of power outages in Bangladesh. With its substantial power output, durable diesel engine, automatic transfer switch, low noise operation, and fuel efficiency, it provides a reliable and cost-effective source of backup electricity.
By choosing the Aksa AC550, you can ensure an uninterrupted power supply for your home, business, or industrial operations, regardless of the challenges posed by the power grid. Investing in the Aksa AC550 is an investment in the future of Bangladesh, where power outages no longer hinder progress and prosperity. It signifies a commitment to reliability and a brighter, more electrified future for the nation, where people and industries can continue to thrive, even in the face of power challenges.
