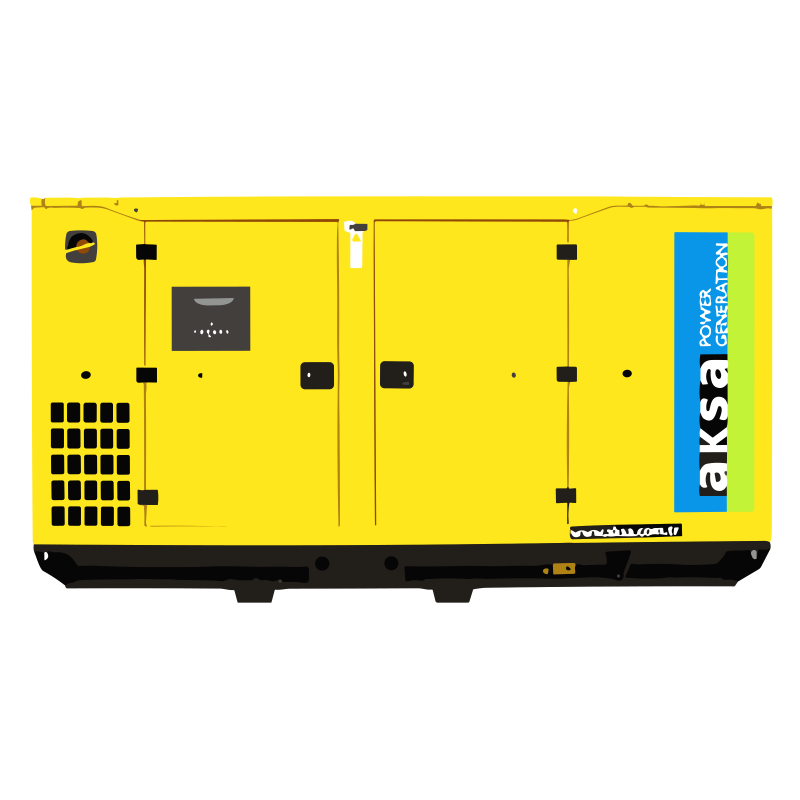

Full Specification of AC 825 Diesel Generator With Details Guide!
- Product: CUMMINS
- Alternator: ECO 40-VL/4 C
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 825 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - VTA28-G6 |
Alternator Made and Model | Mecc Alte - ECO 40-VL/4 C |
Control Panel Model | DSE 7320 |
Canopy | MS 85 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 825 | 660.0 | - | - | 1190.82 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | VTA28-G6 | |
NO. OF CYLINDERS AND BUILD | 12 cylinders - V type | |
BORE AND STROKE | mm | 140 X 152 |
TOTAL DISPLACEMENT | L | 28 |
Aspiration | Turbo Charged and After Cooled | |
COMPRESSION RATIO | 13.1:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 83 |
Standby Power (kW/HP) | 733/982 | |
Prime Power | None | |
Block Heater QTY | 1 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Cummins PT | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 2x143 | |
Charge Alternator (A) | 35 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 651 | |
Coolant Capacity (engine only / with radiator) (lt) | 80/170 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 195 (Standby) | |
Fuel Cons. Prime With %75 Load (lt/hr) | 140 (Standby) | |
Fuel Cons. Prime With %50 Load (lt/hr) | 91 (Standby) |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 40-VL/4 C | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 750 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DER1 | |
Voltage Regulation | (+/-) | 0.5 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 1750 | |
COOLING AIR (m³/min) | m3 | 54 |
SIZE and WEIGHT
Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
5900 | 3742 | 1550 | 2270 | 1000 | |
CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |

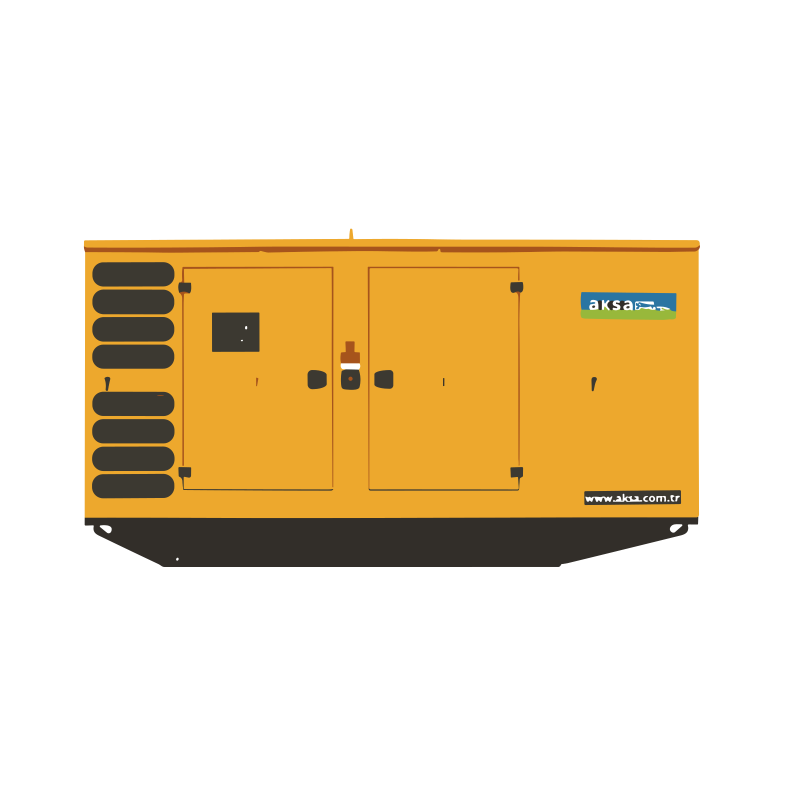

MS 85 | 7640 | 5282 | 1605 | 2504 | 1000 |
STANDARD SPECIFICATIONS
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Remote Radiator Cooling• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )• Paralel system with mains.
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Double wall chassis
Uninterrupted Power Supply with the AC825 Diesel Generator in Bangladesh
Bangladesh, like many other countries, faces recurring power outages and load shedding. In such a scenario, having a reliable source of backup power is essential for both homes and businesses. The AC825 Diesel Generator is one such solution that has gained popularity for its efficiency and performance in providing uninterrupted power supply.
Introduction to the AC825 Diesel Generator
The AC825 Diesel Generator is a robust and dependable power generation system designed to meet the diverse needs of Bangladeshi consumers. It is a versatile choice for a wide range of applications, from homes and small businesses to large industries. Let's delve into the details of this powerful generator and why it's a valuable investment in Bangladesh.
Key Features of the AC825 Diesel Generator
1. Power Output
The AC825 Diesel Generator boasts an impressive power output of 825 kVA, making it suitable for various applications. Whether you need backup power for your residence, a small business, or a large industrial facility, this generator can handle the load.
2. Fuel Efficiency
In a country where fuel costs are a significant concern, the AC825 stands out for its fuel efficiency. It operates on diesel fuel, which is readily available, and it's designed to maximize fuel consumption to minimize operating costs.
3. Reliability
Reliability is paramount when it comes to backup power. The AC825 Diesel Generator is known for its robust and durable construction, ensuring it can withstand the rigors of continuous operation. It's designed to run for extended periods without overheating or experiencing frequent breakdowns.
4. Easy Maintenance
Maintenance is a breeze with the AC825. It comes with user-friendly maintenance features, making it easier for technicians to service the generator, thus reducing downtime.
5. Environmental Considerations
This generator is designed to meet environmental standards and regulations, ensuring minimal emissions and a reduced environmental impact.
6. Soundproofing
Excessive noise can be a concern with generators, but the AC825 is equipped with soundproofing technology to keep noise levels at a minimum, making it suitable for various environments, including residential areas.
Applications of the AC825 Diesel Generator
The versatility of the AC825 makes it ideal for a wide range of applications in Bangladesh, including:
- Residential: Ensure your home is never without power, particularly during frequent power cuts.
- Commercial and Small Businesses: Keep your business operations running smoothly without disruptions or loss of revenue.
- Industrial: The AC825 is capable of handling the power needs of factories, manufacturing plants, and large-scale industrial facilities.
- Agriculture: In rural areas, where electricity supply can be intermittent, this generator is invaluable for running irrigation systems and machinery.
- Healthcare: Hospitals and clinics can rely on the AC825 to provide continuous power for critical medical equipment and patient care.
Conclusion
The AC825 Diesel Generator is a dependable and cost-effective solution to combat the power supply challenges in Bangladesh. With its impressive power output, fuel efficiency, and reliability, it's an investment that ensures uninterrupted electricity supply for your home, business, or industry. If you're looking for a reliable source of backup power in Bangladesh, the AC825 Diesel Generator is undoubtedly worth considering.
