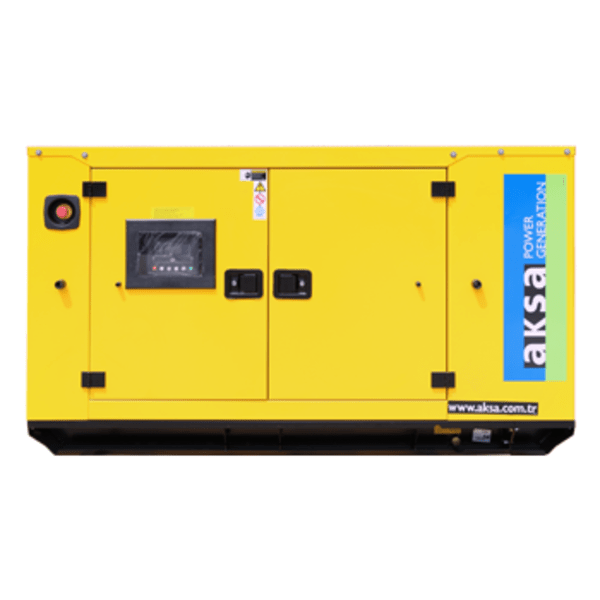

APD110A - Diesel Generator Out Of Stock

EMI Available

Model: APD110A

Brand: AKSA

0.00 0.00

Diesel Generator Set In Bangladesh | Full Specification of APD110A

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

TS ISO 9001-2008
CE

General Characteristics

Model Name	APD 110 A
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA - A4CRX46TI
Alternator Made and Model	Aksa - AK 480
Control Panel Model	DSE 6120
Canopy	ACP 6

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
VOLTAGE	kVA	kW	kVA	kW	Standby Amper
400/231	110	88.00	100	80.00	158.78

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA
Engine Model		A4CRX46TI
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	110 X 125
TOTAL DISPLACEMENT	L	4,58
Aspiration		Turbo Charged and Intercooled(Water to Air)
COMPRESSION RATIO		17:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	14
Standby Power (kW/HP)		102/138.68
Prime Power		93/126.44
Block Heater QTY
		1
Block Heater Power (Watt)
		1000
Fuel Type
		Diesel
Injection Type and System
		Direct
Type of Fuel Pump
		PM pump
Governor System
		Electronic
Operating Voltage (Vdc)
		24 Vdc
Battery and Capacity (Qty/Ah)
		2x60
Cooling Method
		Water Cooled
Cooling Fan Air Flow (m3/min)
		132
Coolant Capacity (engine only / with radiator) (lt)
		6/24
Air Filter
		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
		23

ALTERNATOR SPECIFICATIONS

Manufacturer		Aksa
Alternator Made and Model		AK 480
Frequency (Hz)	Hz	50
Power (kVA)	kVA	100
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		SX460
Voltage Regulation	(+/-)	1%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		406
COOLING AIR (m³/min)	m3	30,84

SIZE and WEIGHT

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	-	-	-	-
CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 6	1685	2390	1058	1681	155

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

Fuel-Water Seperator Filter
Oil heater

ALTERNATOR

Anti-Condensation Heater
Single Phase ( 4 lead)
Main line circuit breaker

CONTROL SYSTEM

Earth fault, single set
Charge Ammeter

TRANSFER SWITCH

Three Pole Contactor
Four Pole Contactor
Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

Main Fuel Tank
Automatic or manual fuel filling system
Manual oil drain pump
Low and high fuel level alarm
Residential silencer
Enclosure: weater protective or sound attenuated
Trailer
Tool kit for maintenance
