Full Specification of APD 200 C Diesel Generator With Details Guide!
Product: CUMMINS
Alternator: AK 4150
CONTROL SYSTEM: DSE 6120
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
General Characteristics
Model Name | APD 200 C |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - 6CTA8.3-G2 |
Alternator Made and Model | Aksa - AK 4150 |
Control Panel Model | DSE 6120 |
Canopy | AK 49 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 200 | 160 | 180 | 144 | 288.68 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | 6CTA8.3-G2 | |
NO. OF CYLINDERS AND BUILD | 6 cylinders - in line | |
BORE AND STROKE | mm | 114 X 135 |
TOTAL DISPLACEMENT | L | 8,30 |
Aspiration | Turbo Charged and Charge Air Cooled | |
COMPRESSION RATIO | 17.3:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 16,6 |
Standby Power (kW/HP) | 180/241 | |
Prime Power | 163/218 | |
Block Heater QTY | 1 | |
Block Heater Power (Watt) | 1500 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | BYC PB | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 2x85 | |
Charge Alternator (A) | 40 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 278 | |
Coolant Capacity (engine only / with radiator) (lt) | 12.3/41.3 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 42 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 31 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 21 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Aksa | |
Alternator Made and Model | AK 4150 | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 187.5 |
DESIGN | Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | AS460 | |
Voltage Regulation | (+/-) | 1,5% |
Insulation System | H | |
Protection | IP22 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 580 | |
COOLING AIR (m³/min) | m3 | 30,84 |

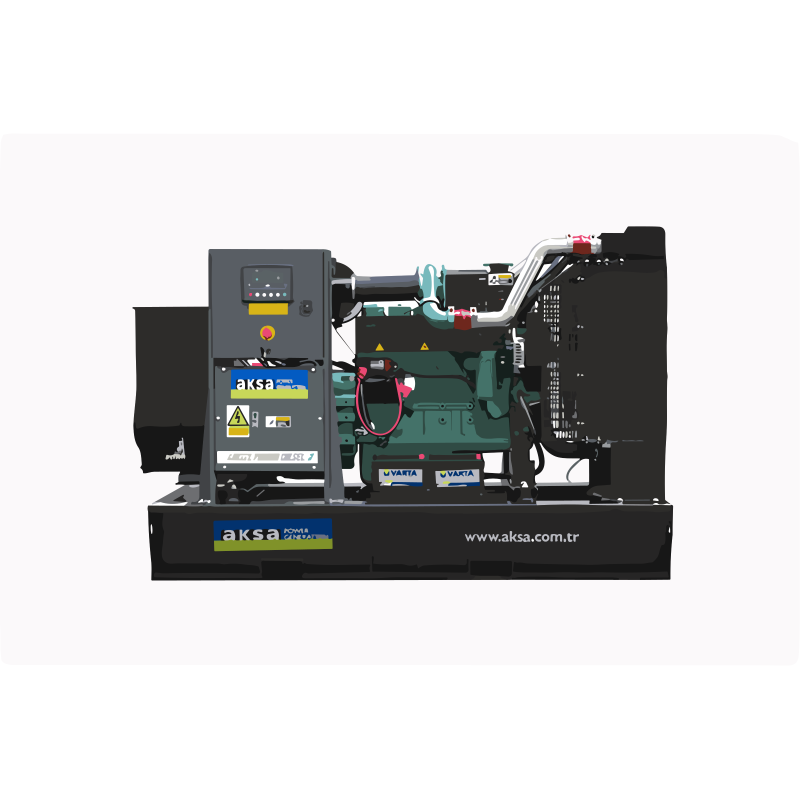

SIZE and WEIGHT
Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
1880 | 2600 | 1250 | 1684 | 473 | |

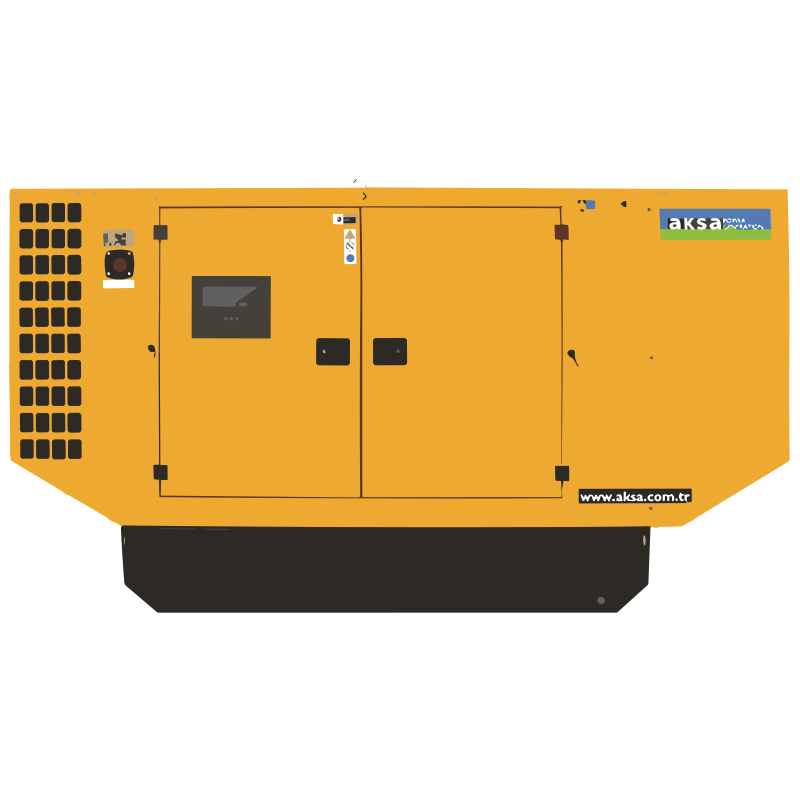

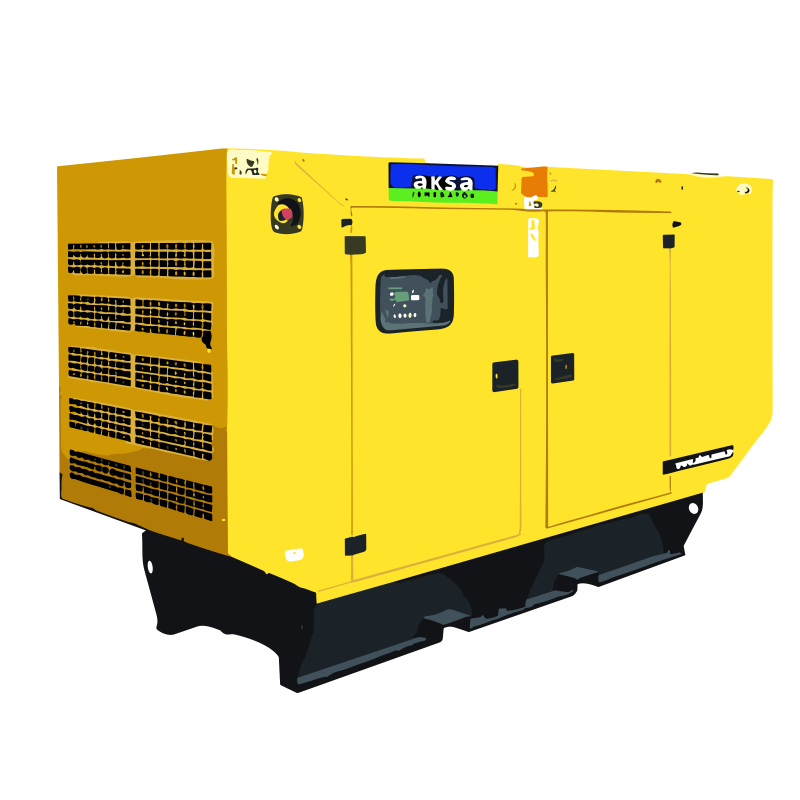

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 49 | 2140 | 3402 | 1147 | 2007 | 340 |
STANDARD SPECIFICATIONS
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
OPTIONAL EQUIPMENTS
ENGINE
- Remote Radiator Cooling
- Fuel-Water Seperator Filter
- Oil heater
ALTERNATOR
- Anti-Condensation Heater
- Main line circuit breaker
CONTROL SYSTEM
- Earth fault, single set
- Charge Ammeter
TRANSFER SWITCH
- Three Pole Contactor
- Four Pole Contactor
- Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
- Main Fuel Tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Low and high fuel level alarm
- Enclosure: weater protective or sound attenuated
- Trailer
- Tool kit for maintenance
- Automatic transfer switch
Powering Progress: The APD200C Diesel Generator in Bangladesh
In a country like Bangladesh, where power outages are a recurring challenge, having a dependable source of backup electricity is crucial for both residential and industrial applications. The APD200C Diesel Generator is rapidly gaining popularity as a trusted solution to address these concerns. In this blog post, we will explore the key features and benefits of the APD200C Diesel Generator and why it is increasingly becoming the go-to choice for ensuring a consistent power supply in Bangladesh.
Key Features of the APD200C Diesel Generator
- High Power Output: The APD200C is a powerful generator with an impressive capacity of [X] kilowatts. Its robust power output is well-suited for a wide range of applications, from homes and businesses to industrial facilities.
- Robust Diesel Engine: Equipped with a rugged and fuel-efficient diesel engine, the APD200C ensures both long-lasting performance and cost-effective operation. Diesel engines are renowned for their reliability, making them an excellent choice in areas prone to frequent power interruptions.
- Automatic Transfer Switch (ATS): The built-in ATS system seamlessly switches between the main power supply and the generator, ensuring uninterrupted power flow during sudden outages.
- Low Noise Operation: Designed with noise reduction in mind, the APD200C operates quietly, minimizing noise pollution. This makes it an ideal choice for urban and residential environments where noise can be a concern.
- Fuel Efficiency: The APD200C is engineered for fuel efficiency, leading to significant long-term cost savings. In a nation where electricity prices can be steep, this is a compelling advantage.
Why Choose the APD200C Diesel Generator in Bangladesh?
- Reliable Power Supply: Bangladesh's power grid often faces instability, resulting in frequent power cuts. The APD200C offers a dependable backup power source, ensuring uninterrupted power to keep your daily operations running smoothly.
- Economic Viability: While the initial investment in a generator might seem substantial, it can lead to considerable cost savings over time. Diesel generators like the APD200C are known for their fuel efficiency, making them an economically viable choice.
- Versatility: The APD200C is designed to cater to a wide array of power requirements, from households to large industrial setups. Its high power output and adaptability make it suitable for diverse applications.
- Environmental Responsibility: Modern diesel generators, including the APD200C, comply with stringent emissions standards and incorporate technologies to reduce harmful emissions. This ensures reliable power without compromising on environmental responsibility.
Conclusion
The APD200C Diesel Generator is a formidable solution to address the persistent problem of power outages in Bangladesh. With its substantial power output, durable diesel engine, automatic transfer switch, low noise operation, and fuel efficiency, it provides a dependable and cost-effective source of backup electricity. By choosing the APD200C, you can ensure a continuous power supply for your home, business, or industrial operations, regardless of the challenges presented by the power grid. Invest in the APD200C and experience the peace of mind that comes with a steady power supply in Bangladesh, powering progress and prosperity for all.
