APD20BD - Diesel Generator in Bangladesh

Aksa power generation system, providing optimum performance, and reliability, for stationary standby applications. All generator sets are factory build, and production tested.

Certificate

  TS ISO 8528

  CE

  SZUTEST

  2000/14/EC

General Characteristics

Model Name	APD 20 BD
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA (Powered by Baudouin) - A4CRW23G1-4M06G2D0
Alternator Made and Model	Aksa - AK 216
Control Panel Model	DSE 6120
Canopy	ACP 3A

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
	kVA	kW	kVA	kW
400/231	20	16.00	18	14.40	28.87

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA (Powered by Baudouin)
Engine Model		A4CRW23G1-4M06G2D0
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	85 X 92
TOTAL DISPLACEMENT	L	2.3
Aspiration		Naturally Aspirated
COMPRESSION RATIO		17.5:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	11.5
Standby Power (kW/HP)		20/26.8
Prime Power		18/24.1
Block Heater QTY		1
Block Heater Power (Watt)		500
Fuel Type		Diesel
Injection Type and System		Direct
Type of Fuel Pump		Mechanical
Governor System		Electronic
Operating Voltage (Vdc)		12Vdc
Battery and Capacity (Qty/Ah)		1x55
Charge Alternator (A)		35
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)		63
Coolant Capacity (engine only / with radiator) (lt)		5/8.6
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)		4.6
Fuel Cons. Prime With %75 Load (lt/hr)		3.6
Fuel Cons. Prime With %50 Load (lt/hr)		2.6

ALTERNATOR SPECIFICATIONS

Manufacturer		Aksa
Alternator Made and Model		AK 216
Frequency (Hz)	Hz	50
Power (kVA)	kVA	20
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		SX460
Voltage Regulation	(+/-)	1,5%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		128
COOLING AIR (m³/min)	m3	5,7

SIZE and WEIGHT

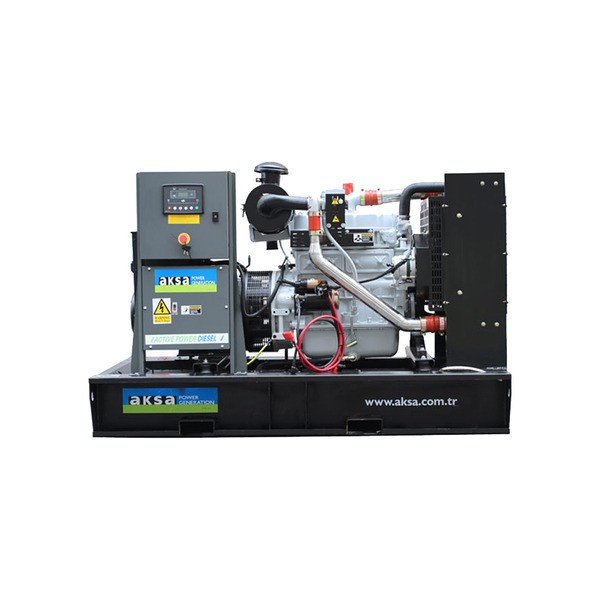

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	525	1696	892	1003

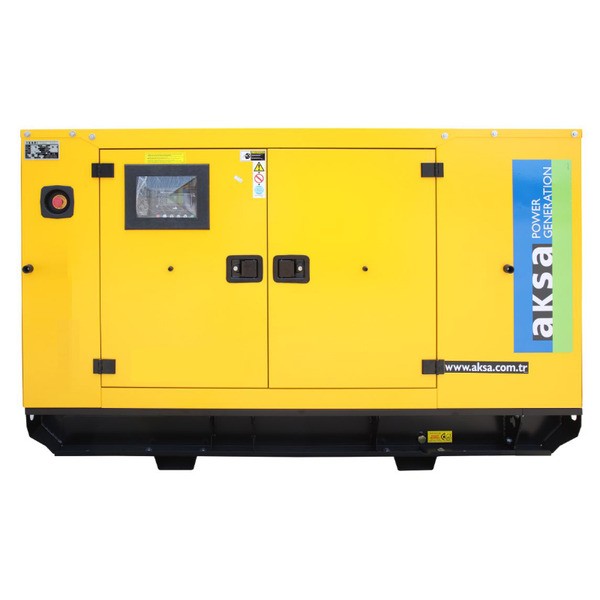

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 3A	655	1980	950	1128	60

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

• Fuel-Water Seperator Filter
• Low water level alarm
• Oil heater

ALTERNATOR

• Anti-Condensation Heater
• Main line circuit breaker

CONTROL SYSTEM

• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH

• Three Pole Contactor
• Four Pole Contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Low and high fuel level alarm
• Enclosure: weater protective or sound attenuated
• Trailer
• Tool kit for maintenance

APD20BD Diesel Generator: Your Power Solution for Dependability and Efficiency

Introduction: In a world where a steady power supply is paramount for both daily life and business operations, having a reliable backup generator is not just an option but a necessity. The APD20BD Diesel Generator is here to ensure that you never experience power disruptions. In this blog post, we will explore the key features, applications, and benefits of the APD20BD Diesel Generator, a powerful and efficient solution for all your electricity needs.

Unpacking the APD20BD Diesel Generator

1. Unmatched Reliability

The APD20BD Diesel Generator is designed to be the dependable workhorse you can rely on when the lights go out. With its robust engine and top-notch alternator, this generator offers a consistent and high-quality power output, ensuring that your home or business remains operational during outages.

2. Fuel Efficiency

In a world where fuel conservation is not just a preference but a necessity, the APD20BD excels. Its diesel engine is engineered for exceptional fuel efficiency, which means you get the most power for every drop of fuel consumed. This translates to cost savings and a reduced environmental footprint.

3. Durability

When it comes to generators, longevity is key. The APD20BD is built with durability in mind, featuring rugged construction and high-quality components. This design guarantees that it can withstand challenging operational conditions, reducing maintenance and ensuring that it will serve you faithfully for years to come.

4. User-Friendly Control Panel

Operating a generator should be a straightforward process, even for those without extensive technical knowledge. The APD20BD excels in this aspect, thanks to its intuitive control panel. Monitoring performance and making necessary adjustments is a breeze, ensuring that you're always in control of your power supply.

5. Versatile Applications

The APD20BD Diesel Generator is a versatile solution suitable for various scenarios, including:

• Backup power for homes and businesses
• Construction sites
• Agricultural and farming operations
• Remote locations with limited access to the grid

Conclusion

The APD20BD Diesel Generator is not just a power source; it's a guarantee of uninterrupted electricity when you need it the most. With its reliable performance, fuel efficiency, durability, and user-friendly features, it is an ideal choice for individuals and businesses seeking a trustworthy power supply solution.

Invest in the APD20BD and secure the uninterrupted power you need for your operations. Say goodbye to downtime and power disruptions, and say hello to a world where electricity is always at your fingertips. The APD20BD Diesel Generator is more than just a machine; it's the key to maintaining productivity and comfort in an electrified world.
