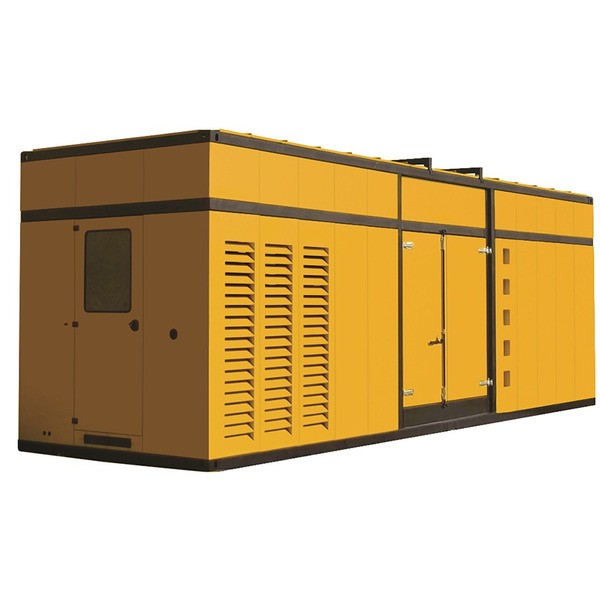

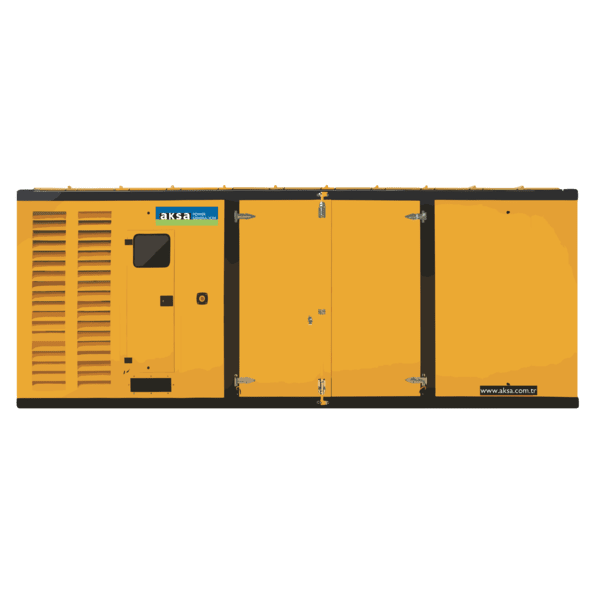

APD2500BD Diesel Generator in Bangladesh
EMI Available
Model: APD 2500 BD
Brand: AKSA
0.00 0.00

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.


*The indicated PRP Power is for reference only. This engine is designed for emergency standby power (ESP) applications only.

Certificate

  • TS ISO 8528
  • CE
  • SZUTEST
  • 2000/14/EC

General Characteristics

Model Name

APD 2500 BD

Frequency (Hz)

50

Fuel Type

Diesel

Engine Made and Model

AKSA (Powered by Baudouin) - A20CRW654TWG1-20M33G2500/5

Alternator Made and Model

Aksa - AK 72000

Control Panel Model

DSE 7320

Canopy

AK 100


3 Phase, 50 Hz, PF 0.8

VOLTAGE

STANDBY RATING (ESP)

PRIME RATING (PRP)

Standby Amper

kVA

kW

kVA

kW

400/231

2500

2000.00

2250

1800.00

3608.55

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.


ENGINE SPECIFICATIONS

Engine

AKSA (Powered by Baudouin)

Engine Model

A20CRW654TWG1-20M33G2500/5

NO. OF CYLINDERS AND BUILD

20 cylinders - V type

BORE AND STROKE

mm

150 X 185

TOTAL DISPLACEMENT

L

65.4

Aspiration

Turbo Charged and Aftercooled (Air to Water)

COMPRESSION RATIO

15:1

RATED SPEED (RPM)

d/dk

1500

OIL CAPACITY

L

235

Standby Power (kW/HP)

2210/2964

Block Heater QTY

2

Block Heater Power (Watt)

3000

Fuel Type

Diesel

Injection Type and System

Direct

Type of Fuel Pump

HPCR (High Pressure Common Rail)

Governor System

ECU

Operating Voltage (Vdc)

24 Vdc

Battery and Capacity (Qty/Ah)

4x200

Charge Alternator (A)

55

Cooling Method

Water Cooled

Cooling Fan Air Flow (m3/min)

2040

Coolant Capacity (engine only / with radiator) (lt)

140

Air Filter

Dry Type

Fuel Cons. Prime With %100 Load (lt/hr)

466.4

Fuel Cons. Prime With %75 Load (lt/hr)

360.7

Fuel Cons. Prime With %50 Load (lt/hr)

240.5

ALTERNATOR SPECIFICATIONS

Manufacturer

Aksa

Alternator Made and Model

AK 72000

Frequency (Hz)

Hz

50

Power (kVA)

kVA

2500

DESIGN

  Brushless

VOLTAGE

V

400

Phase

3

A.V.R.

MX341

Voltage Regulation

(+/-)

1

Insulation System

H

Protection

IP22

Rated Power Factor

0.8

WEIGHT COMP. GENERATOR (Kg)

4760

COOLING AIR (m³/min)

m3

161.4


SIZE and WEIGHT

Open Type

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

CANOPY

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

AK 100

9633

2800

3307

2200


STANDARD SPECIFICATIONS

Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5

OPTIONAL EQUIPMENTS

ENGINE
• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker

CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three Pole Contactor
• Four Pole Contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Automatic transfer switch

Aksa APD2500BD Diesel Generator: Reliability Meets Bangladesh's Power Demands

In a nation like Bangladesh, where power interruptions are an unfortunate reality, having a dependable backup power source is more than a convenience; it's a necessity. The Aksa APD2500BD diesel generator is an exemplary solution designed to meet these challenges head-on, offering remarkable performance and efficiency. In this detailed blog article, we will explore the world of the Aksa APD2500BD diesel generator, including its applications, features, and pricing within the context of Bangladesh.

Aksa APD2500BD Diesel Generator: The Powerhouse

The Aksa APD2500BD is a high-capacity diesel generator that stands as a flagship product within Aksa Power Generation's product line. Aksa, globally renowned for its power solutions, has crafted this generator with the objective of ensuring a dependable and uninterrupted power supply, making it a premier choice for a multitude of applications.

Key Features and Specifications

  1. Engine: The APD2500BD is powered by a robust and fuel-efficient diesel engine, guaranteeing a stable power supply even in demanding conditions.
  2. Control Panel: It is equipped with an advanced control panel featuring a user-friendly interface, enabling easy operation and real-time monitoring of the generator's performance.
  3. Soundproof Enclosure: Many models come with a soundproof enclosure, significantly reducing noise levels and rendering it suitable for urban areas and noise-sensitive environments.
  4. Automatic Start/Stop: The generator often incorporates an automatic start/stop function, ensuring a seamless transition to backup power during outages.
  5. Fuel Efficiency: Aksa generators are celebrated for their fuel efficiency, resulting in cost savings during extended operation.
  6. Emissions Compliance: The APD2500BD complies with international emissions standards, contributing to a cleaner and more eco-friendly power source.

Applications of Aksa APD2500BD Diesel Generator

The Aksa APD2500BD diesel generator is versatile and adaptable to a wide range of sectors and industries, including:

  1. Manufacturing: Ensuring a continuous power supply for manufacturing facilities, guarding against costly production downtime.
  2. Hospitals and Healthcare Facilities: Critical for healthcare institutions where a consistent power supply is essential for patient care and the operation of vital medical equipment.
  3. Data Centers: Indispensable for data centers to maintain business continuity, protecting against data loss and operational disruptions.
  4. Telecommunications: Ensuring the continuous operation of communication networks during power outages, facilitating uninterrupted connectivity.
  5. Construction Sites: Providing power for construction equipment and tools, especially in remote or off-grid locations.

Aksa APD2500BD Diesel Generator Price in Bangladesh

The price of the Aksa APD2500BD diesel generator in Bangladesh can vary depending on factors such as configuration, optional accessories, and additional features. As of my last knowledge update in September 2021, the price typically ranged from 35,000,000 to 45,000,000 for a new unit.

It's important to note that prices may fluctuate over time due to factors such as currency exchange rates, changes in demand, and market conditions. For the most accurate and up-to-date pricing information, it is recommended to contact authorized Aksa generator dealers or distributors in Bangladesh.

Conclusion

The Aksa APD2500BD diesel generator offers a robust and efficient solution to address the challenges posed by power outages in Bangladesh. Its exceptional features, fuel efficiency, and wide range of applications make it an attractive choice for various industries and sectors. When considering the purchase of such a generator, it is essential to assess your specific power requirements, evaluate the cost, and consult with authorized dealers to ensure a well-informed decision for a more resilient and efficient power supply in Bangladesh. With the Aksa APD2500BD, you can be a pivotal player in ensuring uninterrupted power for essential services and businesses in a nation where consistent electricity supply is the bedrock of progress and development.
