Full Specification of APD 35 BD Diesel Generator:

• Product: AKSA (Powered by Baudouin)

• Alternator: AK 228

• CONTROL SYSTEM: DSE 6120

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

  TS ISO 8528

  CE

  SZUTEST

  2000/14/EC

General Characteristics

Model Name	APD 35 BD
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA (Powered by Baudouin) - A4CRW23TG1-4M06G6D0
Alternator Made and Model	Aksa - AK 228
Control Panel Model	DSE 6120
Canopy	ACP 4

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
	kVA	kW	kVA	kW
400/231	35	28.00	32	25.60	50.52

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA (Powered by Baudouin)
Engine Model		A4CRW23TG1-4M06G6D0
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	89 X 92
TOTAL DISPLACEMENT	L	2.3
Aspiration		Turbo Charged
COMPRESSION RATIO		17.5:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	11.5
Standby Power (kW/HP)		33/44
Prime Power		30/40
Block Heater QTY		1
Block Heater Power (Watt)		500
Fuel Type		Diesel
Injection Type and System		Direct
Type of Fuel Pump		Mechanical
Governor System		Electronic
Operating Voltage (Vdc)		12Vdc
Battery and Capacity (Qty/Ah)		1x66
Charge Alternator (A)		35
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)		48
Coolant Capacity (engine only / with radiator) (lt)		5/16
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)		7.1
Fuel Cons. Prime With %75 Load (lt/hr)		5.7
Fuel Cons. Prime With %50 Load (lt/hr)		4

SIZE and WEIGHT

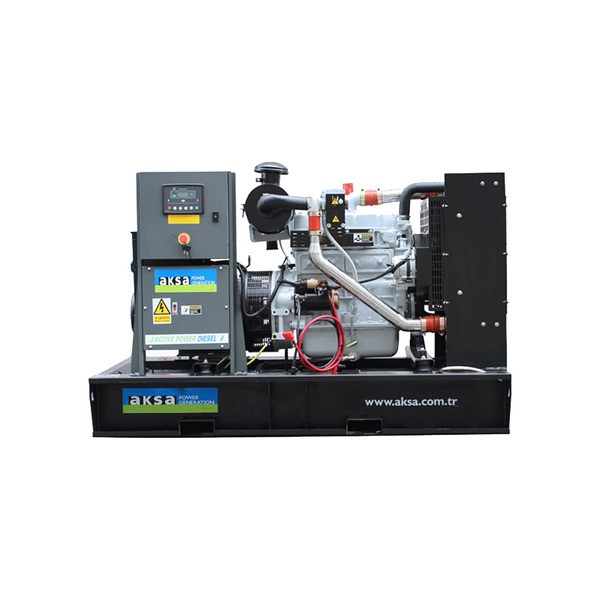

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	600	1840	892	1107	76

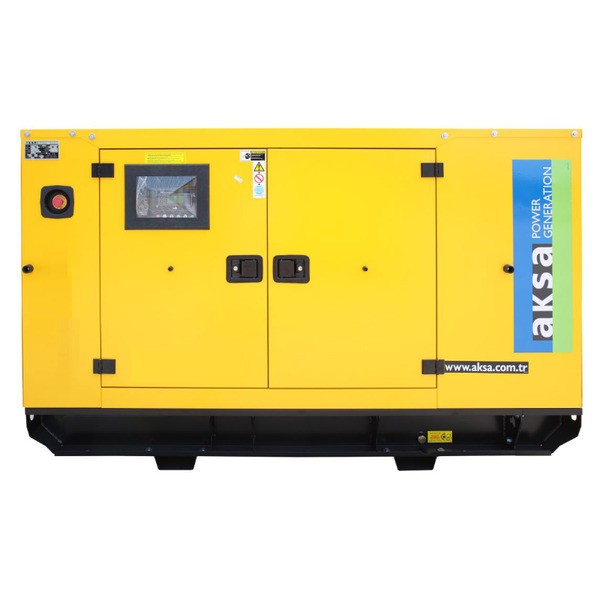

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 4	730	2094	950	1287	76

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR

• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker

CONTROL SYSTEM

• Automatic synchronising and power control system ( multi gen-set Parallel )
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH

• Three Pole Contactor
• Four Pole Contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Automatic transfer switch

 APD 35 BD Diesel Generator: Uninterrupted Power for Every Need

In a world heavily reliant on electricity, the need for a reliable and efficient power source cannot be overstated. Diesel generators have long been a go-to solution, and the APD 35 BD Diesel Generator is no exception. With its impressive power output and versatility, the APD 35 BD is a dependable source of electricity for a wide range of applications. In this blog, we'll take a closer look at the features and capabilities of the APD 35 BD Diesel Generator and explore the scenarios in which it excels.

Unveiling the APD 35 BD Diesel Generator

The APD 35 BD Diesel Generator is a robust and compact power solution designed to deliver a consistent source of electricity in various settings. Let's dive into its key features:

1. Powerful Output: The APD 35 BD offers an impressive power output of 35 kilowatts, making it suitable for a wide range of applications. Whether you need to power a construction site, a small factory, or provide backup power for a large residence, this generator has the capacity to meet your needs.
2. Fuel Efficiency: Powered by a diesel engine, the APD 35 BD is known for its fuel efficiency. This translates to longer run times without frequent refueling, which is crucial in situations where uninterrupted power supply is a priority.
3. Built to Last: This generator is built to endure. It is constructed from high-quality materials and boasts a sturdy design, making it capable of withstanding demanding environmental conditions. From harsh weather to rugged construction sites, the APD 35 BD is up for the challenge.
4. Quiet Operation: Noise pollution can be a concern in many settings. The APD 35 BD is equipped with soundproofing technology, significantly reducing operational noise. This feature is especially important in residential areas and scenarios where noise control is essential.
5. User-Friendly Control Panel: The generator features a digital control panel that is easy to use. This panel allows for convenient monitoring and control of the unit, making operation and maintenance hassle-free.

Applications of the APD 35 BD Diesel Generator

The versatility of the APD 35 BD Diesel Generator makes it a valuable asset in numerous scenarios. Here are some of the applications where this generator truly shines:

1. Industrial Use: Factories, manufacturing facilities, and other industrial sites often require a reliable source of power. The APD 35 BD can seamlessly power machinery and equipment, ensuring consistent production.
2. Construction Sites: Construction sites are dynamic environments where power is essential for running heavy machinery, tools, and temporary lighting. The APD 35 BD can provide the necessary electricity for construction operations.
3. Commercial and Retail: Businesses need a stable power supply to operate smoothly. This generator can serve as a backup power source for retail establishments, ensuring that critical systems like point-of-sale systems and lighting remain functional during power outages.
4. Events and Outdoor Activities: From outdoor concerts to mobile food stalls, the APD 35 BD can provide the power needed to run lighting, sound systems, and various equipment during events and outdoor activities.
5. Critical Infrastructure: Hospitals, data centers, and emergency response centers rely on uninterrupted power. The APD 35 BD can act as a lifeline during emergencies, ensuring that critical equipment remains operational.

Conclusion

The APD 35 BD Diesel Generator is a powerful and versatile solution for various power generation needs. Its combination of impressive power output, fuel efficiency, durability, and low operational noise makes it a popular choice in a wide range of applications. Whether you need a dependable source of backup power for your business or a robust solution for an industrial site, the APD 35 BD Diesel Generator is equipped to meet your power demands. With its commitment to delivering uninterrupted electricity, this generator proves to be a reliable choice for a world that relies on consistent power.
