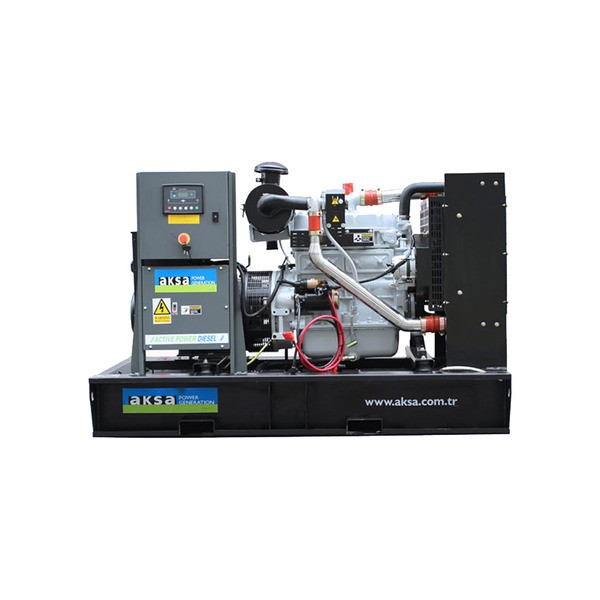

Full Specification of APD 44 BD Diesel Generator:

• Product: AKSA (Powered by Baudouin)

• Alternator: AK 232

• CONTROL SYSTEM: DSE 6120

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

•   TS ISO 8528
•   CE
•   SZUTEST
•   2000/14/EC

General Characteristics

Model Name	APD 44 BD
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA (Powered by Baudouin) - A4CRW23TG2-4M06G8D0
Alternator Made and Model	Aksa - AK 232
Control Panel Model	DSE 6120
Canopy	ACP 4

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
	kVA	kW	kVA	kW
400/231	44	35.20	40	32.00	63.51

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA (Powered by Baudouin)
Engine Model		A4CRW23TG2-4M06G8D0
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	89 X 92
TOTAL DISPLACEMENT	L	2.3
Aspiration		Turbo Charged
COMPRESSION RATIO		17.5:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	11.5
Standby Power (kW/HP)		41/55
Prime Power		37/50
Block Heater QTY		1
Block Heater Power (Watt)		500
Fuel Type		Diesel
Injection Type and System		Direct
Type of Fuel Pump		Mechanical
Governor System		Electronic
Operating Voltage (Vdc)		12Vdc
Battery and Capacity (Qty/Ah)		1x66
Charge Alternator (A)		35
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)		84.3
Coolant Capacity (engine only / with radiator) (lt)		5/16
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)		9.5
Fuel Cons. Prime With %75 Load (lt/hr)		7
Fuel Cons. Prime With %50 Load (lt/hr)		4.7

SIZE and WEIGHT

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	610	1840	892	1107

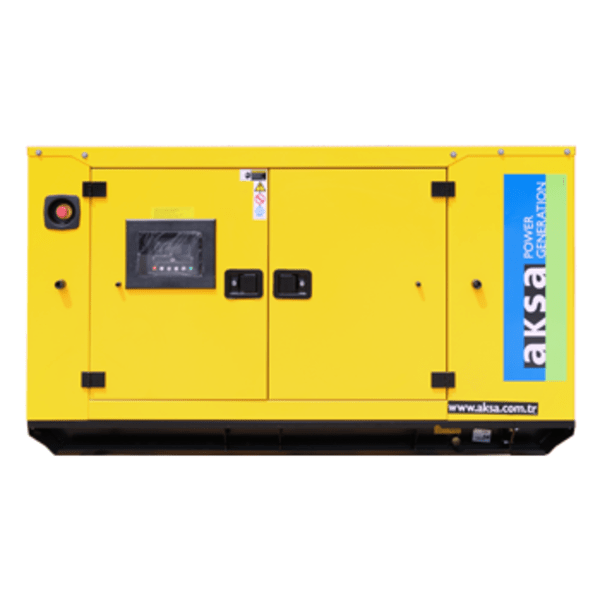

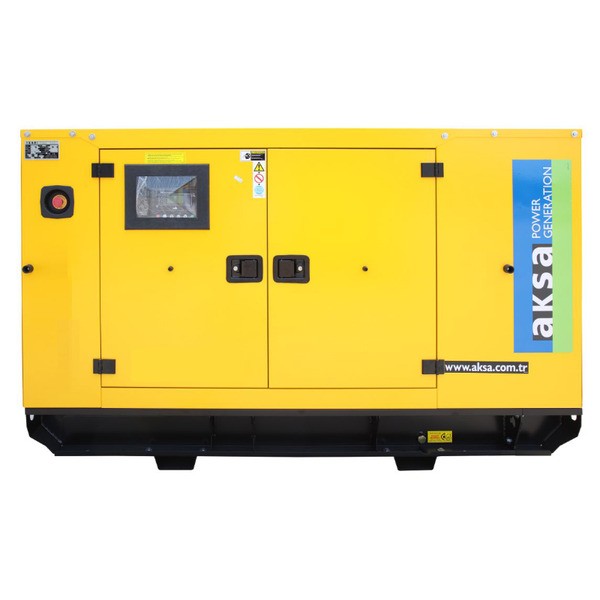

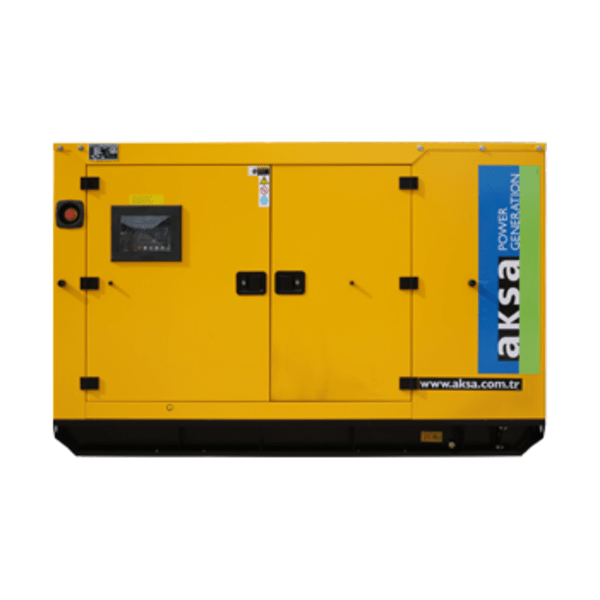

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 4	740	2094	950	1287	76

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR

• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker

CONTROL SYSTEM

• Automatic synchronising and power control system ( multi gen-set Parallel )
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH

• Three Pole Contactor
• Four Pole Contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Automatic transfer switch

APD 44 BD Diesel Generator: Empowering a World of Energy Solutions

In today's energy-dependent world, a reliable source of power is essential for homes, businesses, and industrial operations. Diesel generators have long been a go-to solution for their robustness and dependability. Among these powerhouses is the APD 44 BD Diesel Generator, an exceptional generator that offers high capacity, efficiency, and versatility. In this blog, we will delve into the features and applications of the APD 44 BD Diesel Generator, highlighting how it is powering a diverse array of energy needs.

The APD 44 BD Diesel Generator Unveiled

The APD 44 BD Diesel Generator is a robust, high-capacity power solution designed to deliver uninterrupted electricity across various applications. Let's explore its standout features:

1. High Power Output: The APD 44 BD boasts a remarkable power output of 44 kilowatts, making it well-suited for a broad range of needs. Whether you require backup power for a large commercial facility, a manufacturing plant, or remote operations, this generator has the capacity to meet your demands.
2. Fuel Efficiency: Fueled by a diesel engine, the APD 44 BD is renowned for its fuel efficiency, ensuring extended operation without frequent refueling. This is critical in scenarios where an uninterrupted power supply is paramount.
3. Built to Last: Crafted from top-quality materials and designed for durability, the APD 44 BD can withstand the harshest environmental conditions. From extreme weather to demanding construction sites, this generator proves its resilience.
4. Reduced Noise Levels: Noise pollution can be a significant concern in many settings. The APD 44 BD features advanced soundproofing technology, significantly lowering operational noise. This characteristic is especially important in residential neighborhoods and noise-sensitive environments.
5. User-Friendly Control Panel: The generator is equipped with a user-friendly digital control panel, simplifying operation and maintenance. This panel allows for easy monitoring and control of the unit.

Applications of the APD 44 BD Diesel Generator

The versatility of the APD 44 BD Diesel Generator lends itself to a wide variety of applications. Here are some scenarios where this generator truly excels:

1. Industrial Power: Large-scale manufacturing plants, factories, and other industrial facilities often require substantial power. The APD 44 BD can seamlessly power heavy machinery and equipment, ensuring uninterrupted production.
2. Commercial and Retail: Businesses rely on a steady power supply to function efficiently. This generator can serve as a reliable backup power source for commercial establishments, safeguarding vital systems such as cash registers and lighting during power outages.
3. Construction Sites: Construction sites demand a constant power source for operating heavy machinery, tools, and temporary lighting. The APD 44 BD ensures that construction operations remain on track.
4. Emergency Services: Hospitals, data centers, and emergency response centers rely on uninterrupted power. The APD 44 BD can be a lifeline during crises, ensuring that essential equipment continues to operate.
5. Remote Operations: Whether it's a remote research station, a mobile medical clinic, or a remote telecommunications tower, the APD 44 BD can provide a stable source of electricity in off-grid locations.

Conclusion

The APD 44 BD Diesel Generator stands as a powerful and versatile solution for a diverse array of energy generation needs. With its high capacity, fuel efficiency, durability, and noise reduction features, it is a favored choice for powering essential operations in various industries and settings. Whether you need a dependable source of backup power for your business or a robust solution for an industrial application, the APD 44 BD Diesel Generator is equipped to meet your energy requirements. With a steadfast commitment to delivering uninterrupted electricity, this generator is a cornerstone in a world that relies on constant power.
