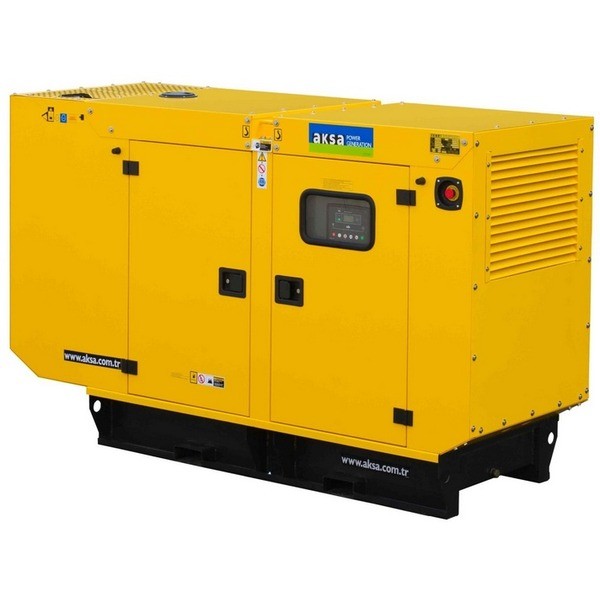

APD55A - Diesel Generating Sets

EMI Available

Model: APD55A

Brand: AKSA

0.00 0.00

Diesel Generator Price in Bangladesh

INTRODUCTION

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

TS ISO 8528
TS ISO 9001-2008
CE
SZUTEST
2000/14/EC

General Characteristics

Model Name	APD 55 A
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA - A4CRX36T
Alternator Made and Model	Aksa - AK 340
Control Panel Model	DSE 6120
Canopy	ACP 5

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
VOLTAGE	kVA	kW	kVA	kW	Standby Amper
400/231	55	44.00	50	40.00	79.39

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA
Engine Model		A4CRX36T
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	98 X 120
TOTAL DISPLACEMENT	L	3.6
Aspiration		Turbo Charged
COMPRESSION RATIO		17.5:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	10
Standby Power (kW/HP)		51/68
Prime Power		46/61
Block Heater QTY
		1
Block Heater Power (Watt)
		500
Fuel Type
		Diesel
Injection Type and System
		Direct
Type of Fuel Pump
		4JI
Governor System
		Mechanic
Operating Voltage (Vdc)
		12 Vdc
Battery and Capacity (Qty/Ah)
		1x54
Cooling Method
		Water Cooled
Coolant Capacity (engine only / with radiator) (lt)
		5/16
Air Filter
		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
		12.4

ALTERNATOR SPECIFICATIONS

Manufacturer		Aksa
Alternator Made and Model		AK 340
Frequency (Hz)	Hz	50
Power (kVA)	kVA	50
DESIGN		4 Pole, Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		SX460
Voltage Regulation	(+/-)	1.5%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		285
COOLING AIR (m³/min)	m3	12,96

SIZE and WEIGHT

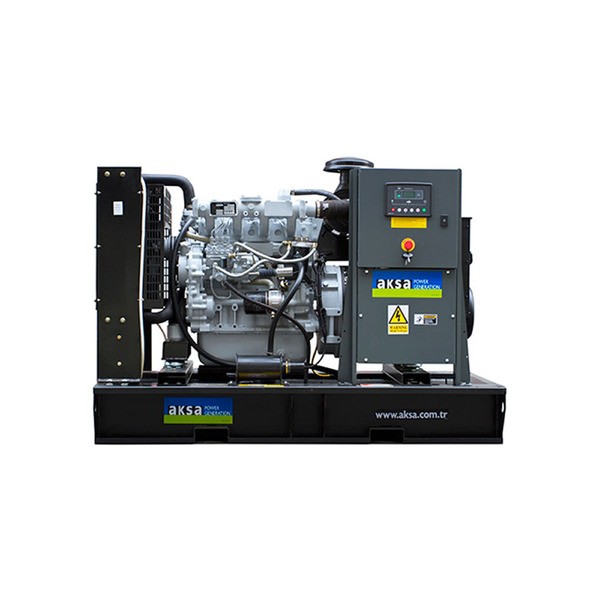

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	-	-	-	-

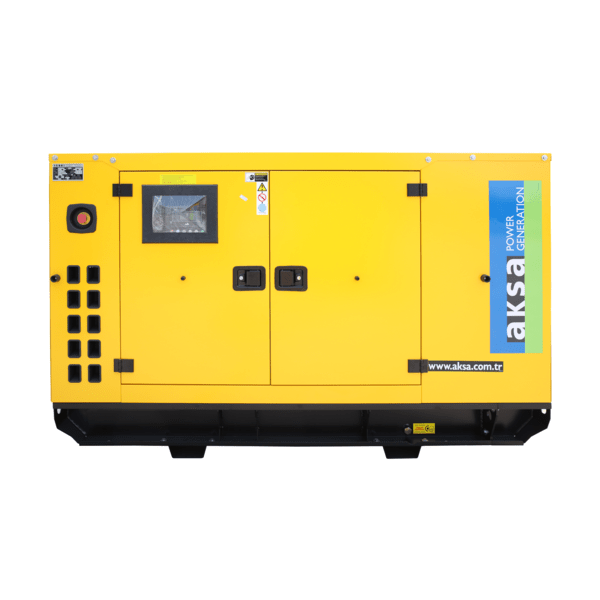

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 5	1170	2282	1008	1532	180

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

Remote Radiator Cooling
Fuel-Water Seperator Filter

ALTERNATOR

Anti-Condensation Heater
Main line circuit breaker

CONTROL SYSTEM

Charge Ammeter
TRANSFER SWITCH
Three Pole Contactor
Four Pole Contactor
Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

Main Fuel Tank
Automatic or manual fuel filling system
Manual oil drain pump
Residential silencer
Enclosure: weater protective or sound attenuated
Trailer
Tool kit for maintenance
