Full Specification of APD 55 BD Diesel Generator:

• Product: AKSA (Powered by Baudouin)

• Alternator: AK 340

• CONTROL SYSTEM: DSE 6120

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

• TS ISO 8528

• CE

• SZUTEST

• 2000/14/EC

General Characteristics

Model Name	APD 55 BD
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA (Powered by Baudouin) - A4CRW23TIG1-4M06G10D0
Alternator Made and Model	Aksa - AK 340
Control Panel Model	DSE 6120
Canopy	ACP 5

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
	kVA	kW	kVA	kW
400/231	55	44.00	50	40.00	79.39

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA (Powered by Baudouin)
Engine Model		A4CRW23TIG1-4M06G10D0
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	89 X 92
TOTAL DISPLACEMENT	L	2.3
Aspiration		Turbo Charged and Air to Air AfterCooled
COMPRESSION RATIO		17.5:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	9.2
Standby Power (kW/HP)		53/71
Prime Power		48/64
Block Heater QTY		1
Block Heater Power (Watt)		500
Fuel Type		Diesel
Injection Type and System		Direct
Type of Fuel Pump		HPCR (High Pressure Common Rail)
Governor System		ECU
Operating Voltage (Vdc)		12Vdc
Battery and Capacity (Qty/Ah)		1x66
Charge Alternator (A)		50
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)		102
Coolant Capacity (engine only / with radiator) (lt)		5/12.9
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)		11.9
Fuel Cons. Prime With %75 Load (lt/hr)		8.9
Fuel Cons. Prime With %50 Load (lt/hr)		6

SIZE and WEIGHT

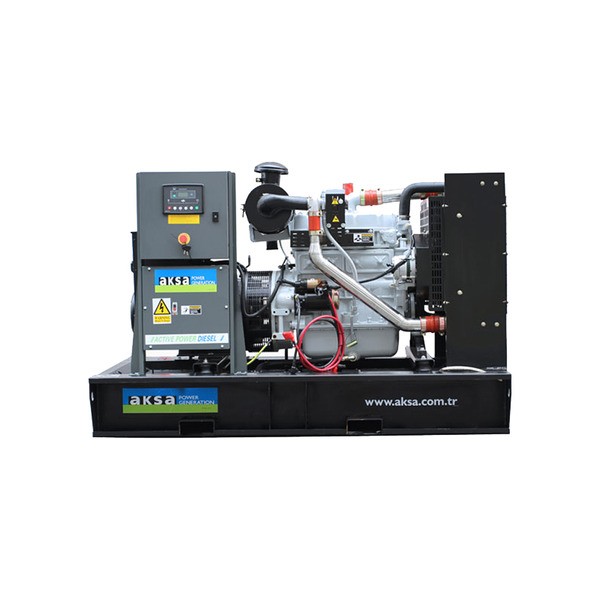

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	830	2015	950	1315

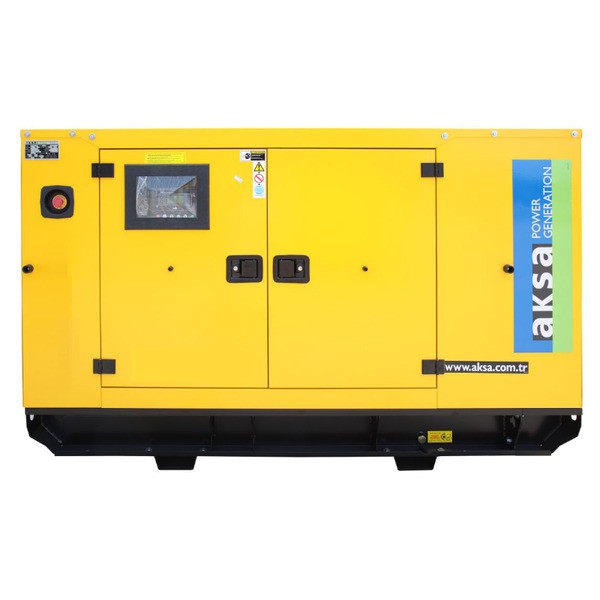

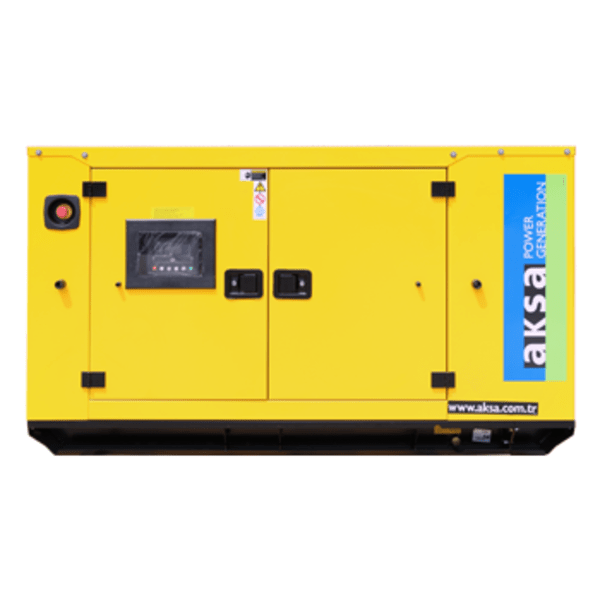

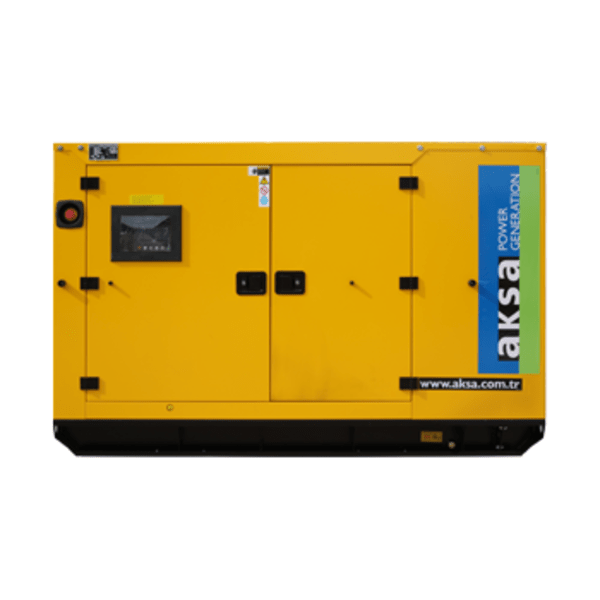

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 5	1050	2282	1008	1532	180

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR

• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker

CONTROL SYSTEM

• Automatic synchronising and power control system ( multi gen-set Parallel )
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH

• Three Pole Contactor
• Four Pole Contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Automatic transfer switch

APD 55 BD Diesel Generator: Your Trusted Powerhouse for Uninterrupted Electricity

In a world where power is at the core of our everyday lives, having a reliable source of electricity is crucial. Diesel generators have long been the backbone of power generation, providing dependable solutions in various scenarios. The APD 55 BD Diesel Generator is a prime example of this reliability and efficiency. With its high capacity, impressive features, and adaptability, the APD 55 BD is a versatile powerhouse that ensures uninterrupted electricity supply across a wide range of applications. In this blog, we will explore the features and diverse applications of the APD 55 BD Diesel Generator, showcasing how it serves as a beacon of stability in the world of energy.

Unveiling the APD 55 BD Diesel Generator

The APD 55 BD Diesel Generator is a robust and high-capacity power solution designed to deliver consistent electricity across various settings. Let's take a closer look at its standout features:

1. High Power Output: The APD 55 BD boasts a remarkable power output of 55 kilowatts, making it suitable for a broad spectrum of applications. Whether you need backup power for a large industrial facility, construction site, or mission-critical operations, this generator has the capacity to meet your requirements.
2. Fuel Efficiency: Driven by a diesel engine, the APD 55 BD is renowned for its fuel efficiency, allowing extended operation without frequent refueling. This feature is invaluable when a continuous power supply is a necessity.
3. Built to Last: Crafted from top-quality materials and designed for durability, the APD 55 BD can withstand harsh environmental conditions, from extreme weather to rugged industrial settings.
4. Noise Reduction: Noise pollution can be a major concern in various environments. The APD 55 BD features advanced soundproofing technology, significantly reducing operational noise. This makes it ideal for residential neighborhoods, commercial spaces, and other noise-sensitive areas.
5. User-Friendly Control Panel: The generator is equipped with a user-friendly digital control panel, simplifying operation and maintenance. This panel allows for easy monitoring and control of the unit.

Applications of the APD 55 BD Diesel Generator

The versatility of the APD 55 BD Diesel Generator makes it a go-to solution in a wide range of applications. Here are some scenarios where this generator excels:

1. Industrial Powerhouses: Large-scale manufacturing plants, factories, and industrial facilities often require substantial power. The APD 55 BD can seamlessly power heavy machinery, equipment, and other essential operations, ensuring uninterrupted production.
2. Construction Sites: Construction sites are dynamic environments that demand a constant power source for running heavy machinery, tools, and temporary lighting. The APD 55 BD ensures that construction operations remain on schedule.
3. Commercial and Retail: Businesses depend on a steady power supply to function efficiently. This generator can serve as a dependable backup power source for commercial establishments, safeguarding critical systems during power outages.
4. Emergency Services: Hospitals, data centers, and emergency response centers rely on uninterrupted power. The APD 55 BD can act as a lifeline during crises, ensuring that essential equipment continues to operate.
5. Remote Operations: Whether it's a remote research station, a mobile medical clinic, or a remote telecommunications tower, the APD 55 BD can provide a stable source of electricity in off-grid locations.

Conclusion

The APD 55 BD Diesel Generator stands as a robust and versatile solution for a diverse array of energy generation needs. With its high capacity, fuel efficiency, durability, and noise reduction features, it is a top choice for powering essential operations in various industries and settings. Whether you need a reliable source of backup power for your business or a resilient solution for an industrial application, the APD 55 BD Diesel Generator is equipped to meet your energy requirements. With a steadfast commitment to delivering uninterrupted electricity, this generator is a cornerstone in a world that relies on constant power.
