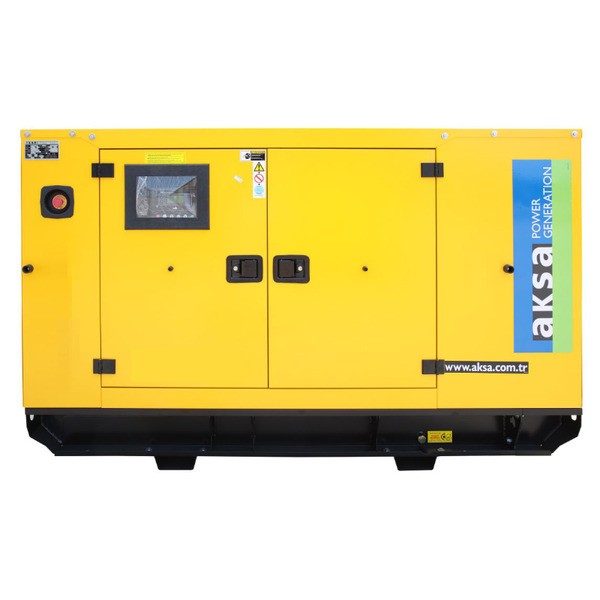

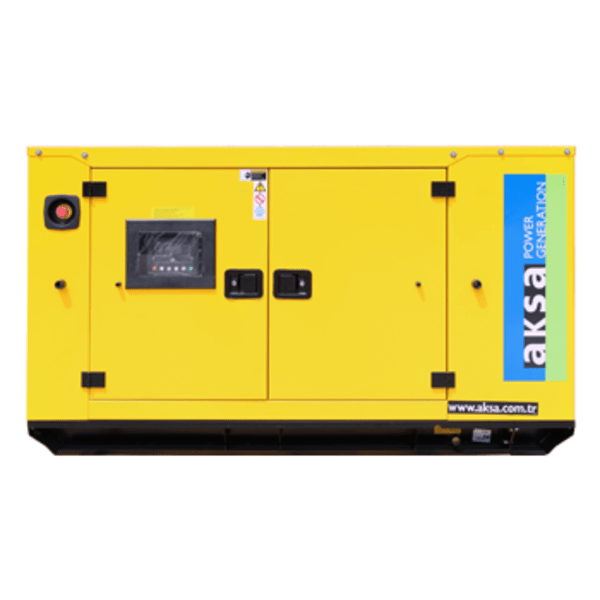

APD75A - Diesel Generator
EMI Available
Model: APD75A
Brand: AKSA
0.00 0.00

Diesel Generator Price In Bangladesh


Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.


Certificate

  •   TS ISO 8528
  •   TS ISO 9001-2008
  •   CE
  •   SZUTEST
  •   2000/14/EC

General Characteristics

Model Name

APD 75 A

Frequency (Hz)

50

Fuel Type

Diesel

Engine Made and Model

AKSA - A4CRX36TI

Alternator Made and Model

Aksa - AK 360

Control Panel Model

DSE 6120

Canopy

ACP 5



3 Phase, 50 Hz, PF 0.8

VOLTAGE

STANDBY RATING (ESP)

PRIME RATING (PRP)

Standby Amper

kVA

kW

kVA

kW

400/231

75

60.00

70

56.00

108.26



STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.



ENGINE SPECIFICATIONS

Engine

AKSA

Engine Model

A4CRX36TI

NO. OF CYLINDERS AND BUILD

4 cylinders - in line

BORE AND STROKE

mm

98 X 120

TOTAL DISPLACEMENT

L

3.6

Aspiration

Turbo Charged

COMPRESSION RATIO

17.5:1

RATED SPEED (RPM)

d/dk

1500

OIL CAPACITY

L

10

Standby Power (kW/HP)

67/89.8

Prime Power

63/84.5

Block Heater QTY

1

Block Heater Power (Watt)

500

Fuel Type

Diesel

Injection Type and System

Direct

Type of Fuel Pump

6BB pump

Governor System

Mechanic

Operating Voltage (Vdc)

12 Vdc

Battery and Capacity (Qty/Ah)

1x54

Cooling Method

Water Cooled

Cooling Fan Air Flow (m3/min)

175.2

Coolant Capacity (engine only / with radiator) (lt)

5/19.5

Air Filter

Dry Type

Fuel Cons. Prime With %100 Load (lt/hr)

17.25



ALTERNATOR SPECIFICATIONS

Manufacturer

Aksa

Alternator Made and Model

AK 360

Frequency (Hz)

Hz

50

Power (kVA)

kVA

75

DESIGN

  4 Pole,  Brushless

VOLTAGE

V

400

Phase

3

A.V.R.

SX460

Voltage Regulation

(+/-)

1.5%

Insulation System

H

Protection

IP22

Rated Power Factor

0.8

WEIGHT COMP. GENERATOR (Kg)

337

COOLING AIR (m³/min)

m3

12,96



SIZE and WEIGHT

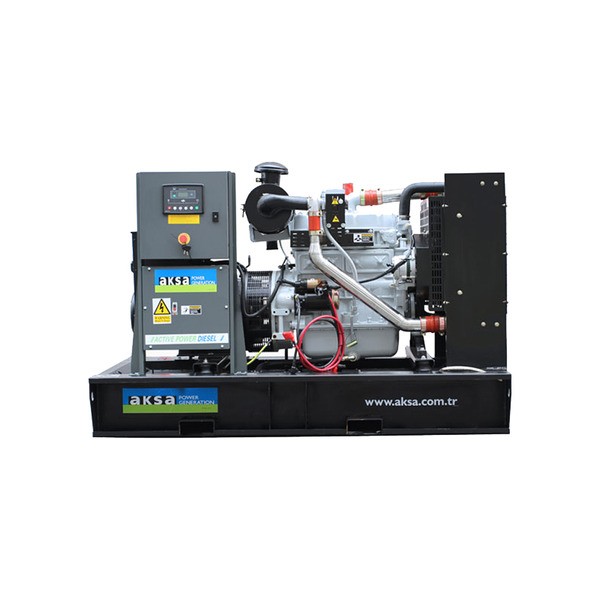

Open Type

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

-

-

-

-

CANOPY

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

ACP 5

1250

2282

1008

1532

180



STANDARD SPECIFICATIONS


  • Water cooled, Diesel engine
  • Radiator with mechanical fan
  • Protective grille for rotating and hot parts
  • Electric starter and charge alternator
  • Starting battery (with lead acid) including rack and cables
  • Engine coolant heater
  • Base frame design incorporates an integral fuel tank and anti-vibration isolators
  • Flexible fuel connection hoses
  • Single bearing, class H alternator
  • Industrial exhaust silencer and steel bellows supplied separately(for open sets)
  • Static battery charger
  • Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

  • Remote Radiator Cooling
  • Fuel-Water Seperator Filter
  • Oil heater

ALTERNATOR

  • Anti-Condensation Heater
  • Main line circuit breaker

CONTROL SYSTEM

  • Charge Ammeter
  • TRANSFER SWITCH
  • Three Pole Contactor
  • Four Pole Contactor
  • Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

  • Main Fuel Tank
  • Automatic or manual fuel filling system
  • Manual oil drain pump
  • Low and high fuel level alarm
  • Residential silencer
  • Enclosure: weater protective or sound attenuated
  • Trailer
  • Tool kit for maintenance
